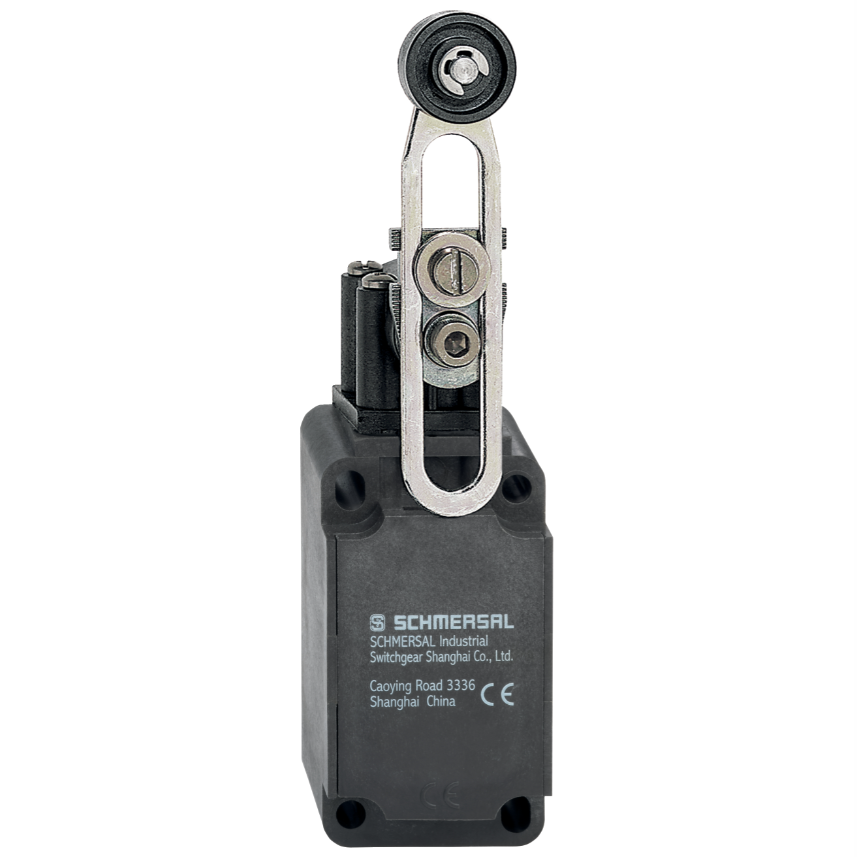

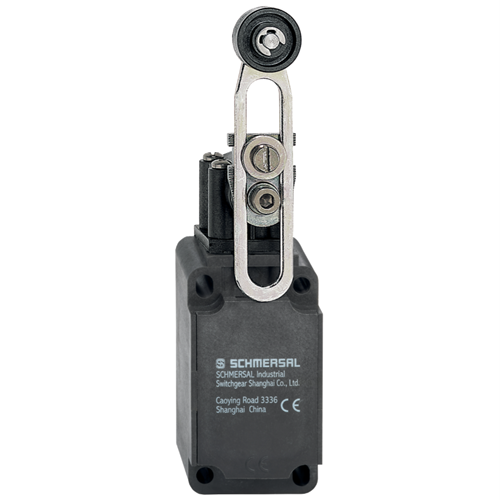

Schmersal 151155768 Position switch 1NO+1NC

Product Code: 151155768

  • 4A current, 1NO+1NC contact config
  • IP65/IP67 protection rated
  • Operates from -30 to 80°C
  • Snap action with roller lever
  • Durable glass fibre reinforced housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
57mm
Height
173.5mm
Weight
0.165kg
Width
40.5mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
