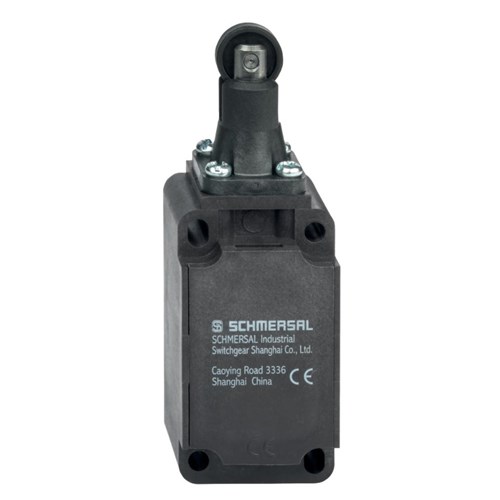

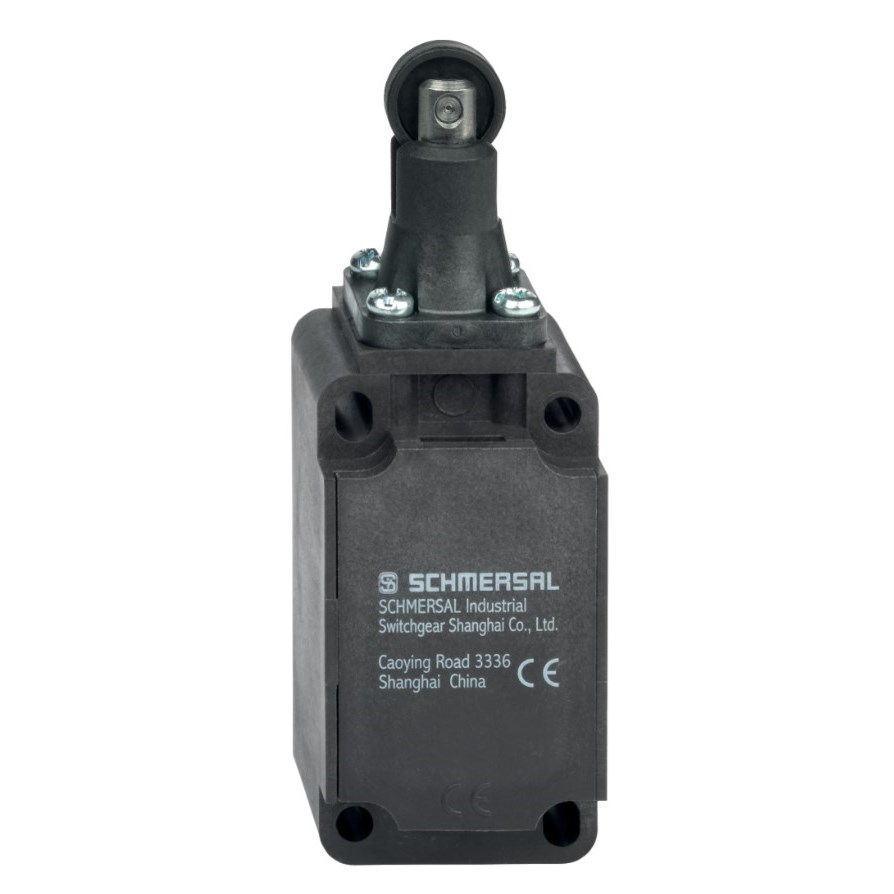

Schmersal 151154789 Limit Switch 2NC

Product Code: 151154789

  • 2NC contact configuration
  • Durable plastic, glass fibre housing
  • IP65/IP67 protection rating
  • Operates from -30 to 80°C
  • Complies with EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller plunger
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
38mm
Height
116.5mm
Weight
0.116kg
Width
40.5mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C
