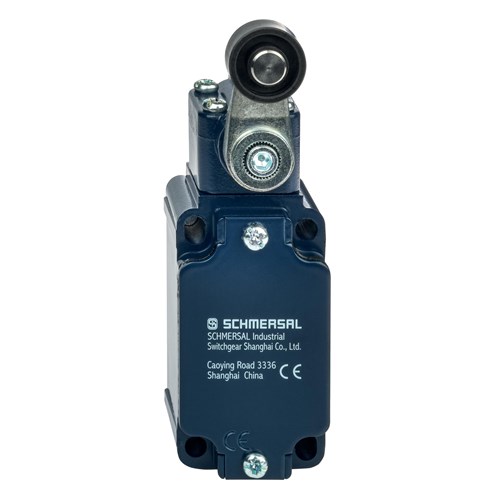

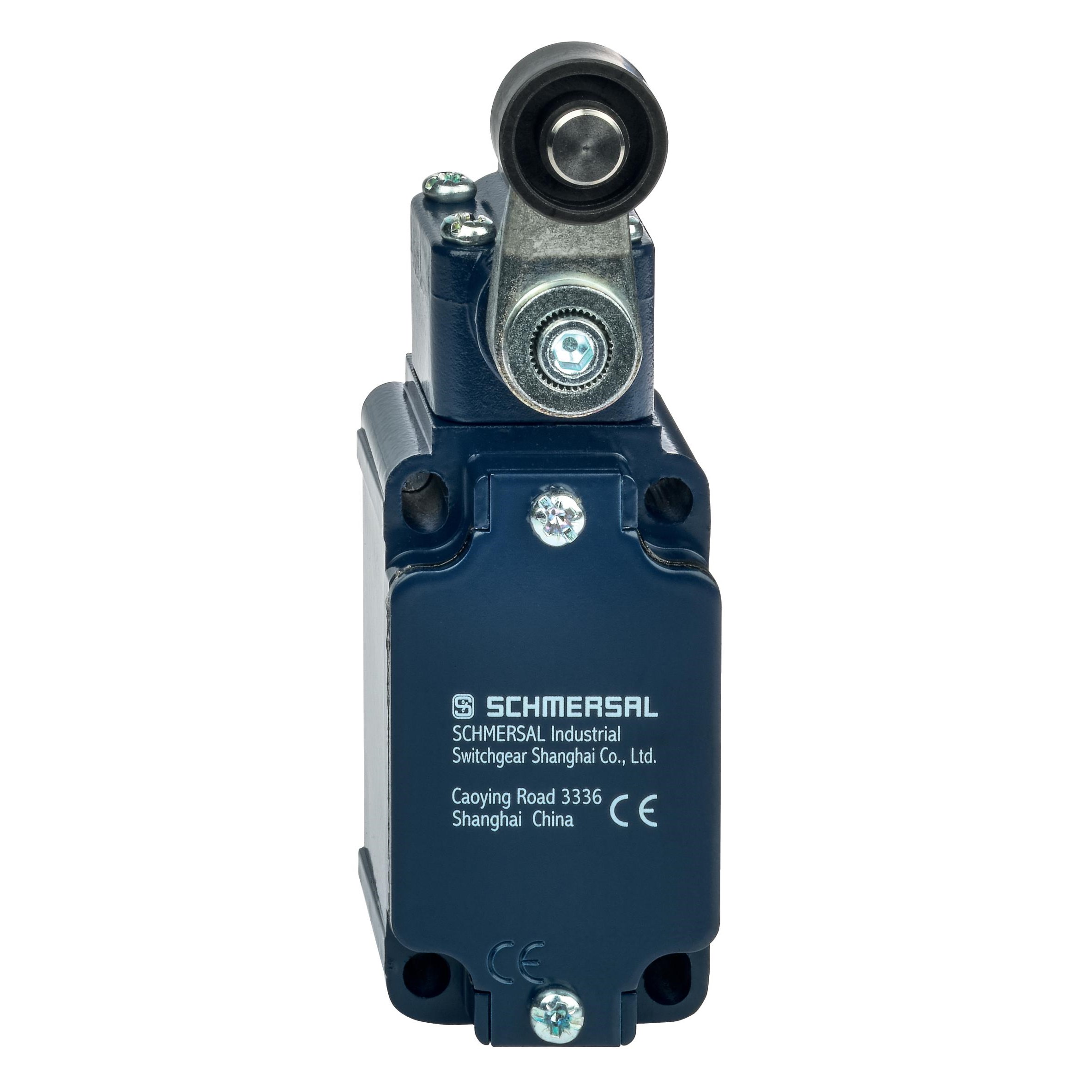

POSITION SWITCH 335 METAL FILM 1NC 1NO SCHMERSAL Z4VH 335-11Z-M20

Product Code: 151154520

  • 230 VAC, 24 VDC rated limit switch
  • Durable die-cast light alloy housing
  • IP67 protection for harsh environments
  • Snap action with roller lever actuator
  • Long mechanical life of 30 million cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
335

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
4A (Utilisation Cat AC-15)4A (Utilisation Cat DC-13)
Rated Voltage (Ur)
230 VAC (Utilisation Cat AC-15)24 VDC (Utilisation Cat DC-13)
Terminal Type
Screw terminals

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
60.6mm
Height
129.5mm
Weight
0.265kg
Width
40.5mm

Environmental

Operating Temperature
-30°C to 80°C
IP Rating
IP65IP67

Documents

IPD Product Catalogue V17
