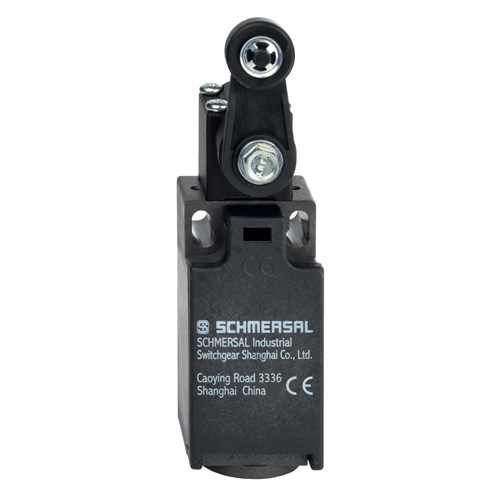

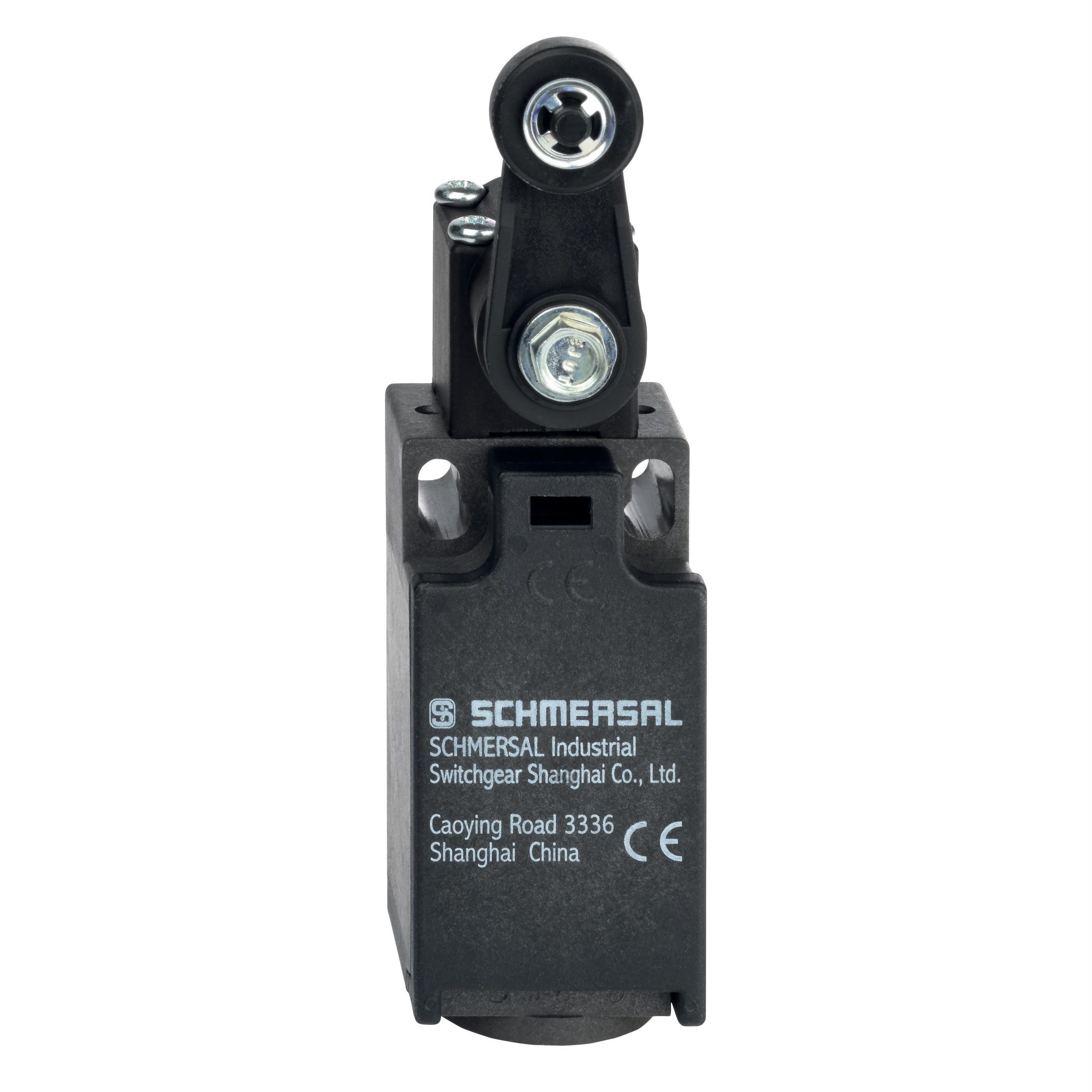

Schmersal 151154488 Position Switch with Safety Function 230VAC, 24VDC NC

Product Code: 151154488

  • Supports 230 VAC & 24 VDC
  • Contact config: NC, silver material
  • Durable plastic housing, IP67 rated
  • Operates from -30 to 80°C
  • Snap action with roller lever
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
42.5mm
Height
109mm
Weight
0.08kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C
