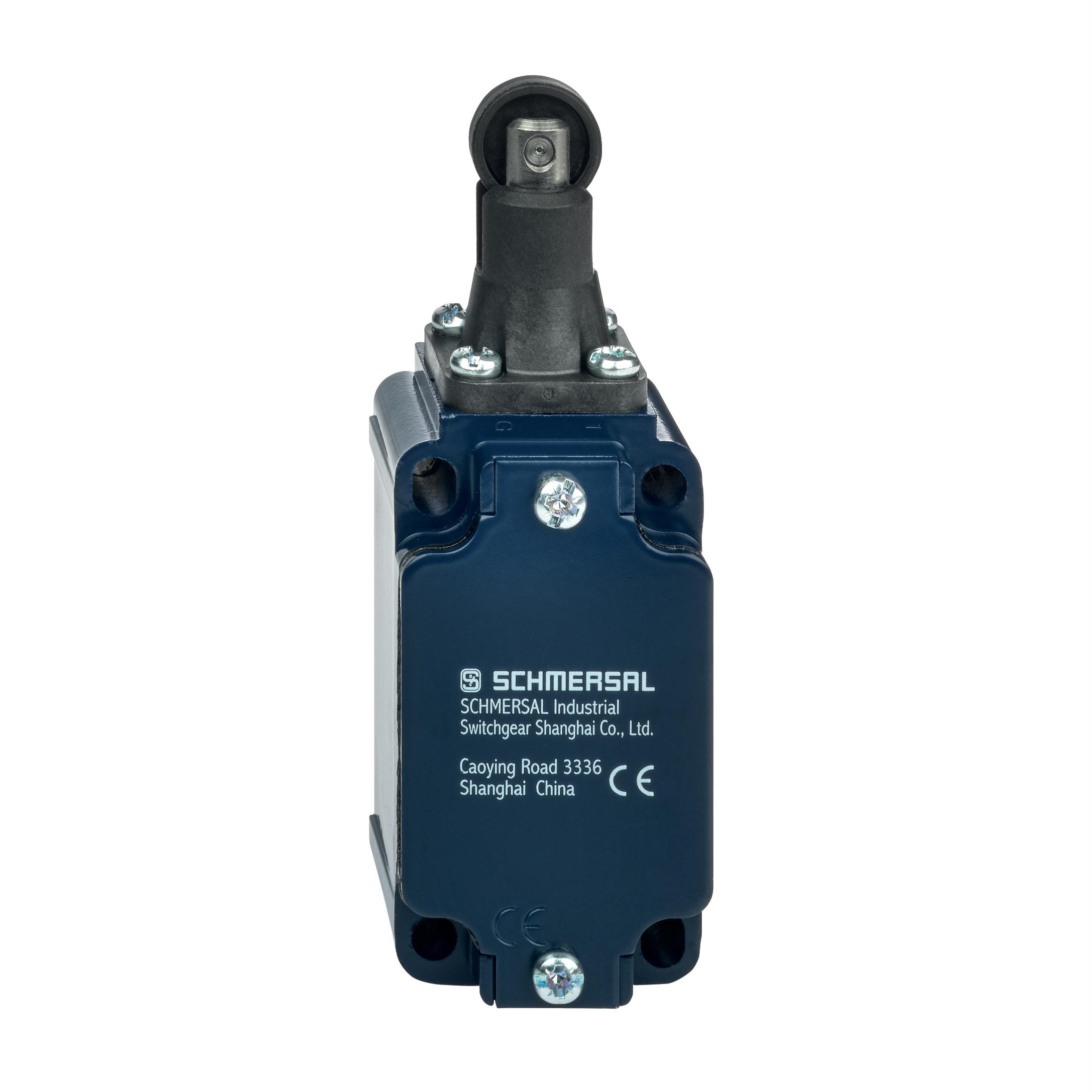

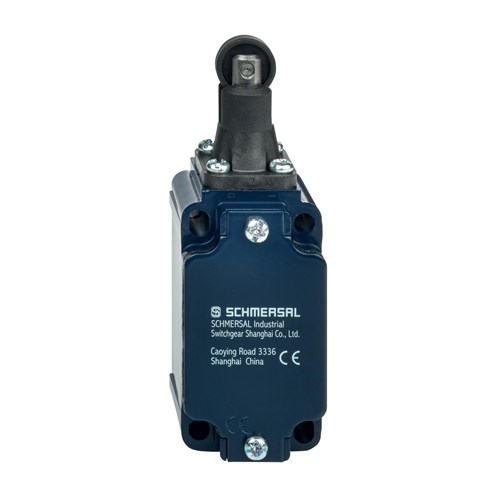

Schmersal 151154447 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151154447

  • Snap action with roller plunger for quick response
  • Robust die-cast light alloy housing, IP67 rated
  • Operates in extreme temps from -30 to 80°C
  • Long mechanical life of 30 million cycles
  • Complies with EN ISO 13849-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller plunger
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
38mm
Height
116.6mm
Weight
0.211kg
Width
40.5mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
