Products

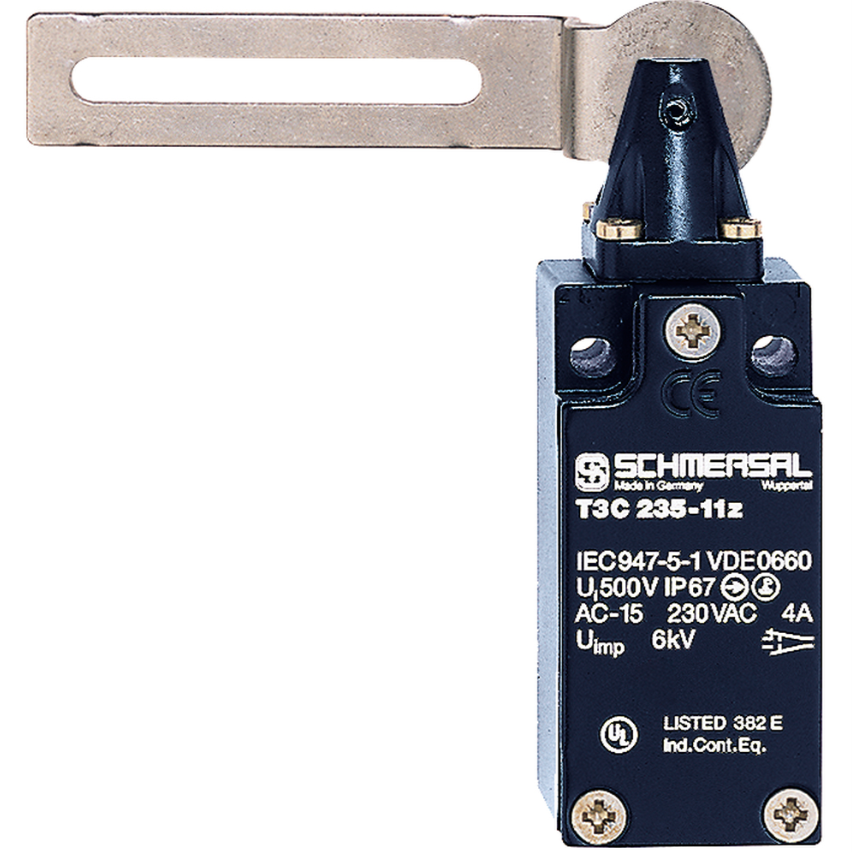

Schmersal 151154219 Flap safety switch 1NO+1NC

Product Code: 151154219

  • Durable die-cast zinc housing
  • IP67 protection for harsh conditions
  • Operates from -30 to 80°C
  • Slow action with swivel lever
  • Complies with EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Swivel lever
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
30mm
Height
161mm
Weight
0.199kg
Width
30mm

Environmental

IP Rating
IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
