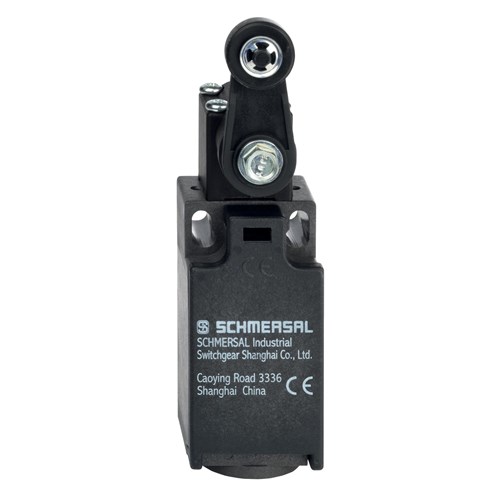

Schmersal 151153303 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151153303

  • Rated for 230 VAC & 24 VDC, 4 A & 1 A
  • IP67 protection against dust and water
  • Durable with 20 million mechanical cycles
  • Operates in -30 to 80°C temperature range
  • Snap action with roller lever actuator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch With Safety Function
Brand
Schmersal
Series
ZV1H 236-11Z-M20

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
4A (AC-15, 230V AC)/ 1A (DC-13, 24V DC)
Rated Voltage (Ur)
230V AC (AC-15)/ 24V DC (DC-13)
Terminal Type
Screw terminals

Mechanical

Actuator Type
Roller lever
Housing Material
Glass-fibre reinforced thermoplastic

Dimensions & Physical Data

Depth
42.5mm
Height
109mm
Weight
0.068kg (approx.)
Width
30mm

Environmental

IP Rating
IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
