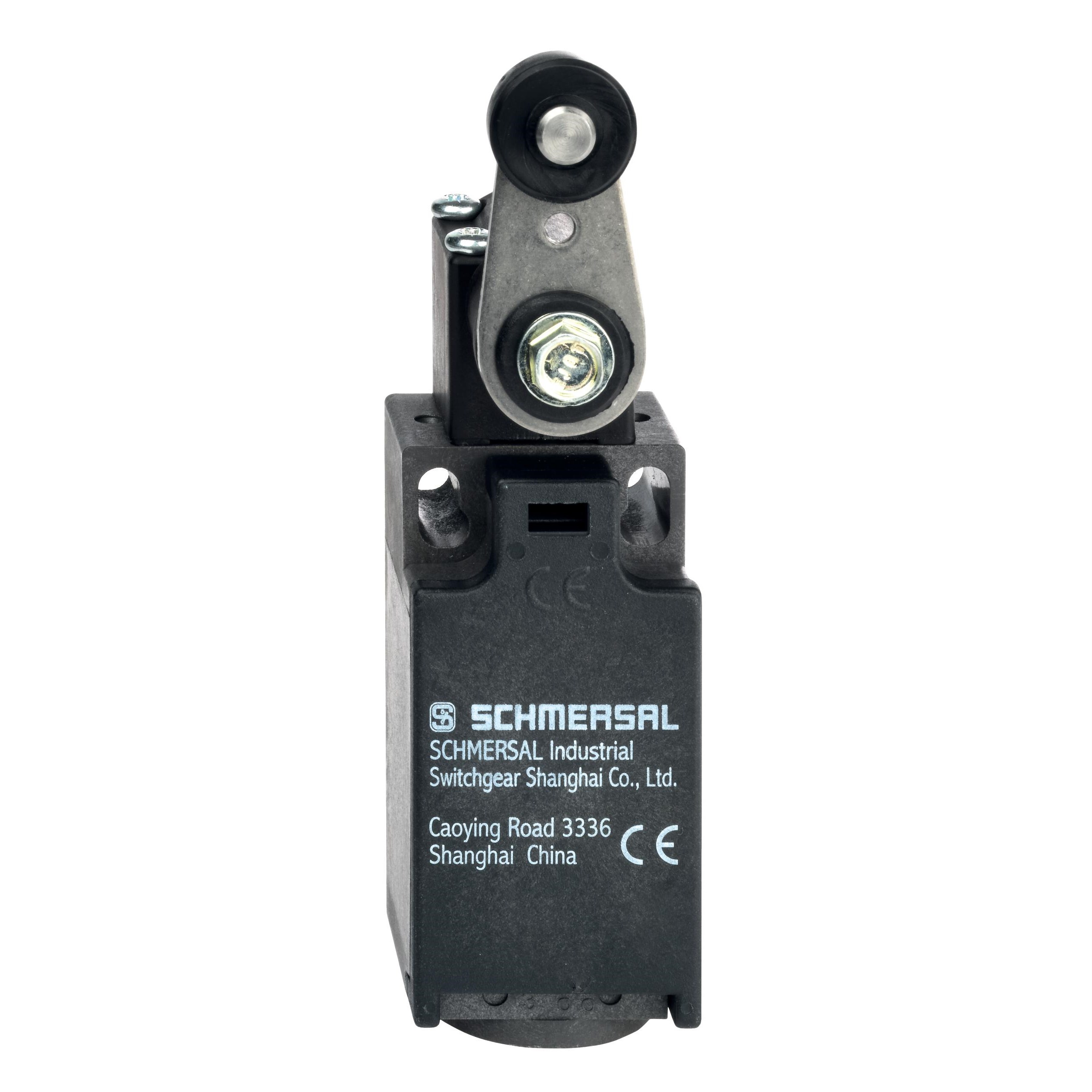

Schmersal 151153085 Position Switch with Safety Function 230VAC, 24VDC

Product Code: 151153085

  • Dual voltage: 230 VAC, 24 VDC
  • High durability: 20 million cycles
  • Robust IP67 protection rating
  • Wide temp range: -30 to 80°C
  • Complies with EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
46mm
Height
108.5mm
Weight
0.078kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C
