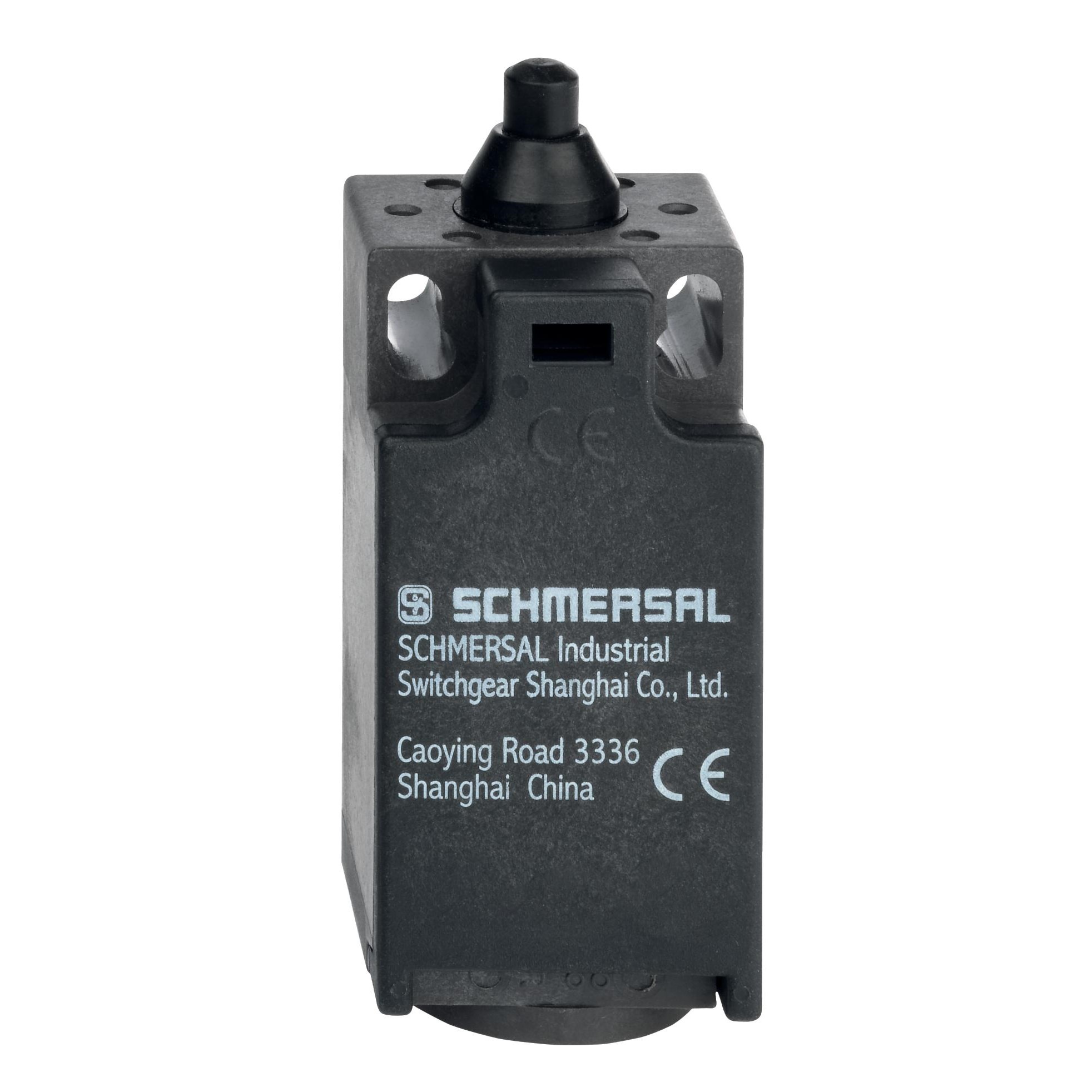

Schmersal 151152880 Position Switch Plunger NO-1NC Plastic Glass Fibre Reinforced Thermoplastic

Product Code: 151152880

  • Rated for 230 VAC, 1000 A
  • Durable glass fibre reinforced plastic housing
  • IP67 protection against dust and water
  • Complies with ENIEC 60947-5-1, ENISO 13849-1 standards
  • Slow action plunger actuator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
236 plunger S

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
10A

Mechanical

Actuator Type
Plunger
Contact Material
Silver
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
30mm
Height
73.5mm
Weight
0.049kg
Width
30mm

Environmental

IP Rating
IP65, IP67
Ambient Temperature
-40°C to 80°C
