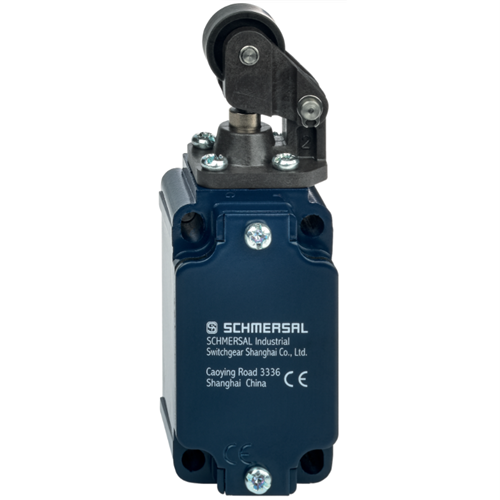

Schmersal 151152788 Offset Roller Lever Limit Switch Die Cast Light Alloy Silver Contact

Product Code: 151152788

  • Rated 10 A, robust for various applications
  • Durable die-cast light alloy housing
  • High protection: IP65 & IP67 rated
  • Complies with EN standards for safety
  • Snap action with angle roller lever actuator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
335 offset roller lever K

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
10A

Mechanical

Actuator Type
Offset Roller Lever
Contact Material
Silver
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
38mm
Height
118.5mm
Weight
0.217kg
Width
40.5mm

Environmental

IP Rating
IP65, IP67
Ambient Temperature
-40°C to 80°C
