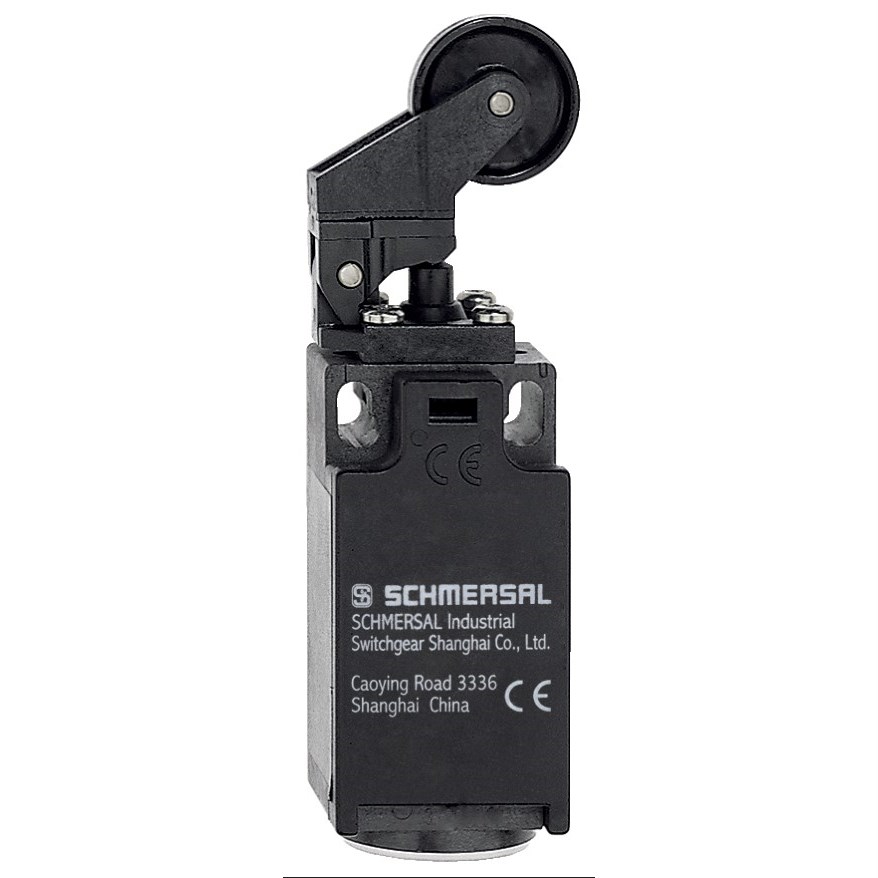

Schmersal 151151629 Limit Switch 1NO+1NC

Product Code: 151151629

  • Rated current of 10 A with snap action
  • Durable design with 20 million cycles
  • IP65/IP67 protection for harsh conditions
  • Operates in -30 to 80°C temperature range
  • Complies with EN ISO and IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Angle roller lever
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
30mm
Height
107mm
Weight
0.059kg
Width
32mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
