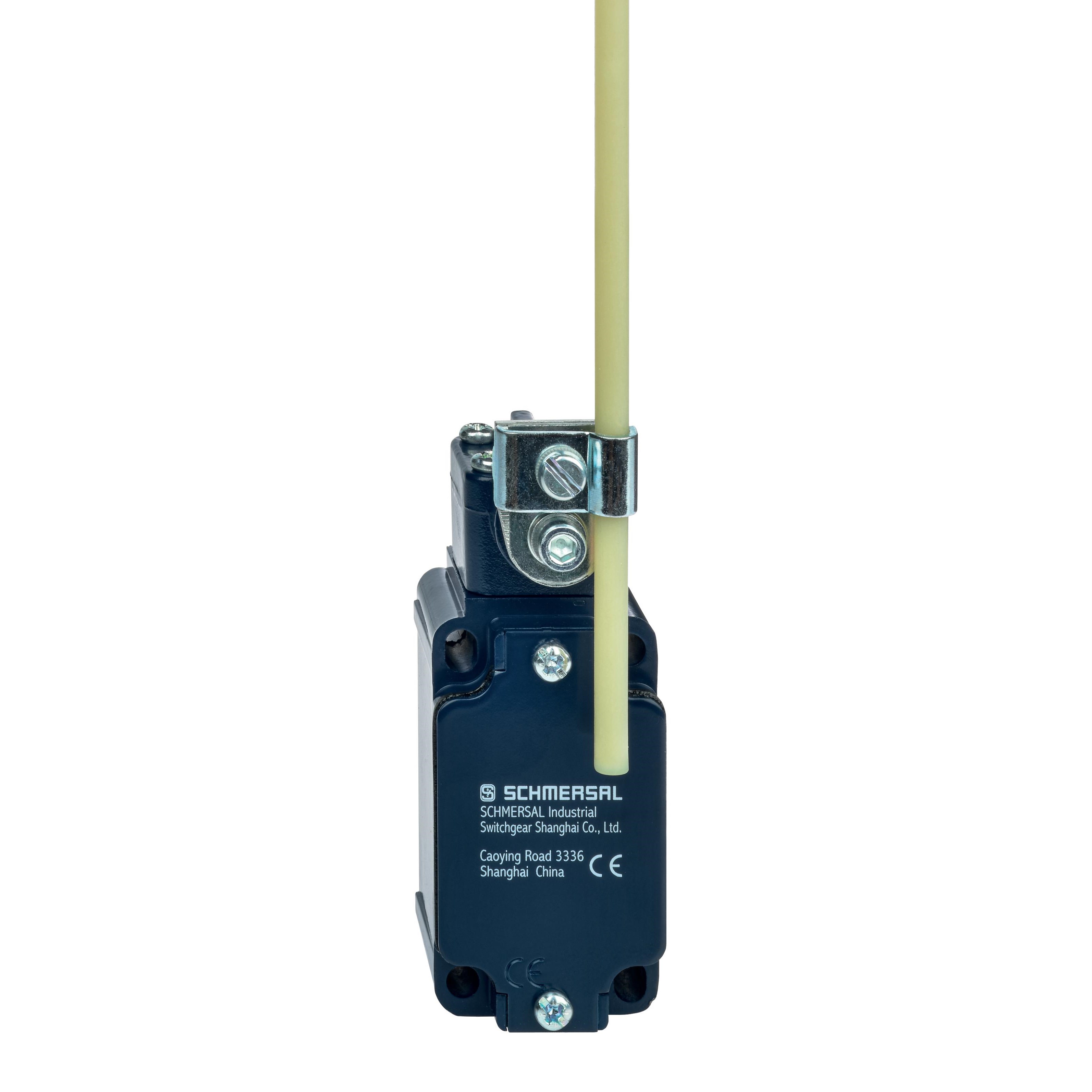

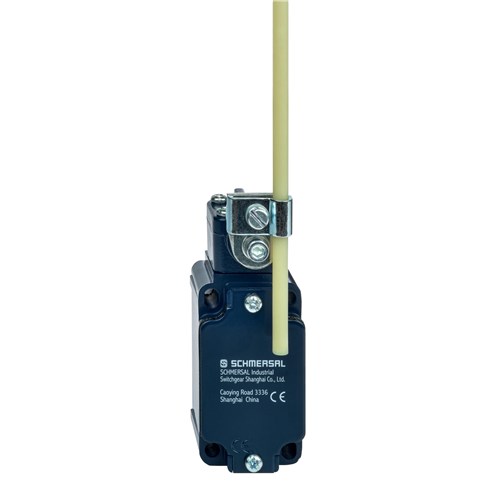

Schmersal 151147376 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151147376

  • Operates on 230 VAC or 24 VDC
  • Handles up to 4 A current
  • Durable die-cast light alloy housing
  • IP67 protection for harsh environments
  • Long mechanical life of 30 million cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Rod lever
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
38mm
Height
11.5mm
Weight
0.312kg
Width
40.5mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
