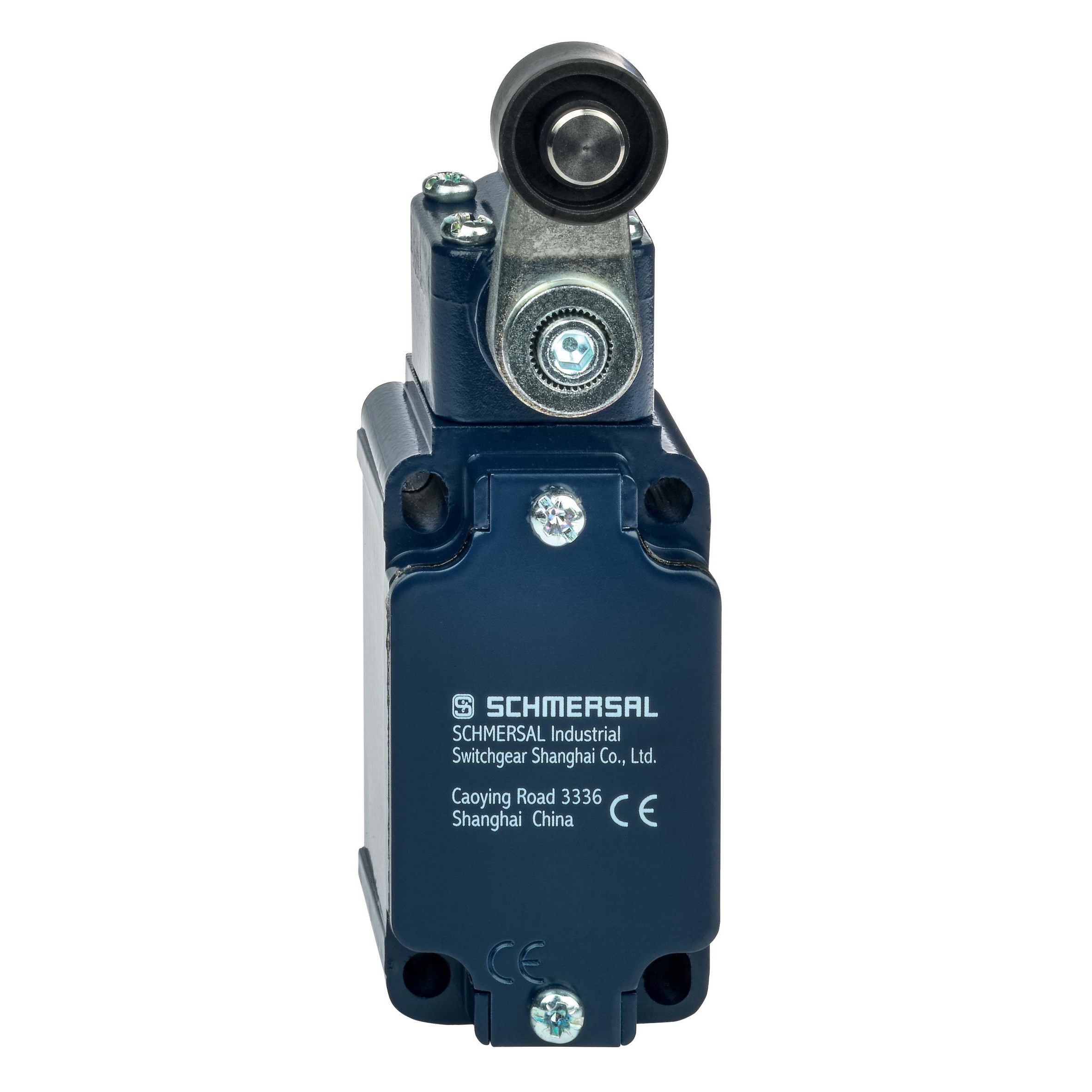

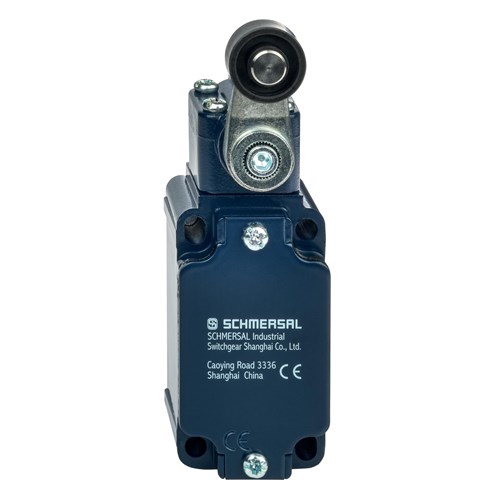

Schmersal 151147372 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151147372

  • Rated Voltage: 230 VAC, 24 VDC
  • Durable die-cast light alloy housing
  • IP67 protection for harsh environments
  • Long mechanical life of 30 million cycles
  • Roller lever with slow action mechanism
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
60.6mm
Height
129.5mm
Weight
0.3kg
Width
40.5mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C
