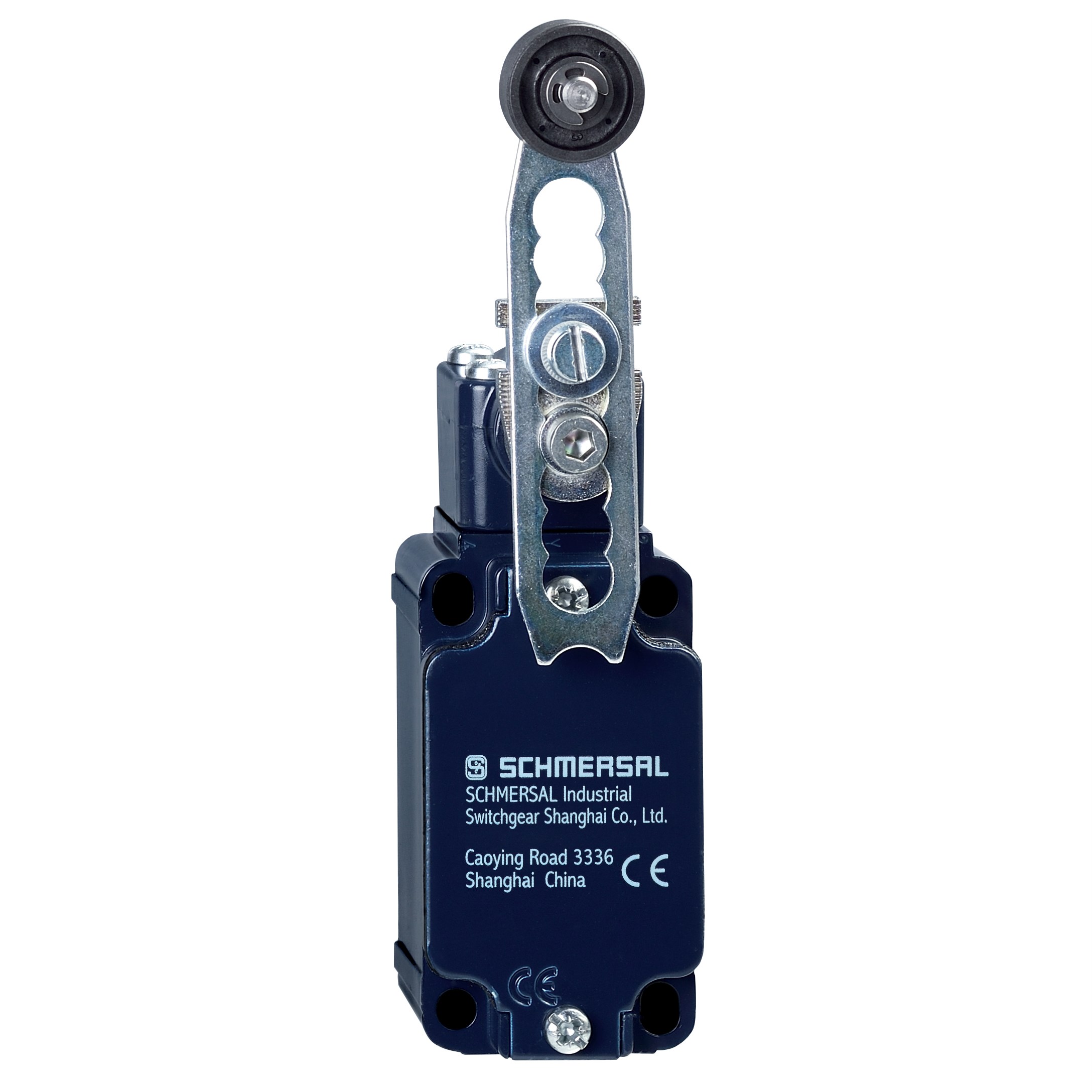

POSITION SWITCH METAL ENCLO 2NC ROLLER LEVER SCHMERSAL Z4V7H 335-02Z-2138

Product Code: 151147045

  • IP65/IP67 for robust protection
  • Complies with EN IEC 60947-5-1 standards
  • Snap action mechanism for quick response
  • Durable silver contact material
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
335

Electrical

Rated Current (In)
4A (Utilisation Cat AC-15)4A (Utilisation Cat DC-13)
Rated Voltage (Ur)
230 VAC (Utilisation Cat AC-15)24 VDC (Utilisation Cat DC-13)
Terminal Type
Screw terminals

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
57.3mm
Height
171.5mm
Weight
0.265kg
Width
40.5mm

Environmental

Operating Temperature
-30°C to 80°C
IP Rating
IP65IP67

Documents

IPD Product Catalogue V17
