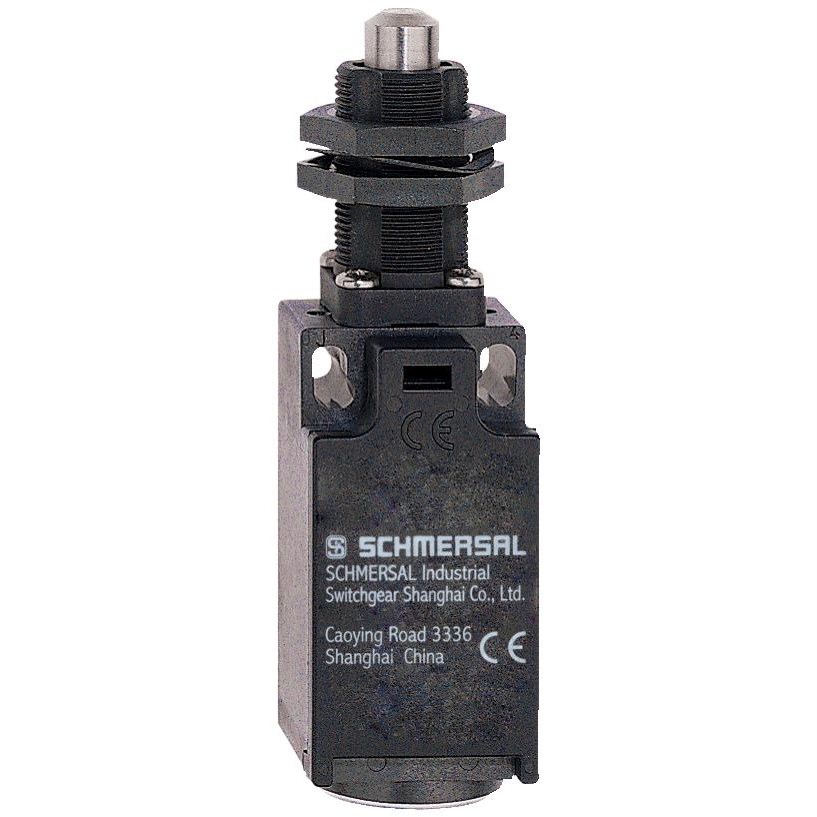

Schmersal 151112897 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151112897

  • Supports 230 VAC & 24 VDC
  • Durable with 20M mechanical cycles
  • Robust IP67 protection rating
  • Operates from -30 to 80°C
  • Compact size: 30x30x101.5 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Plunger
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
30mm
Height
101.5mm
Weight
0.08kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
