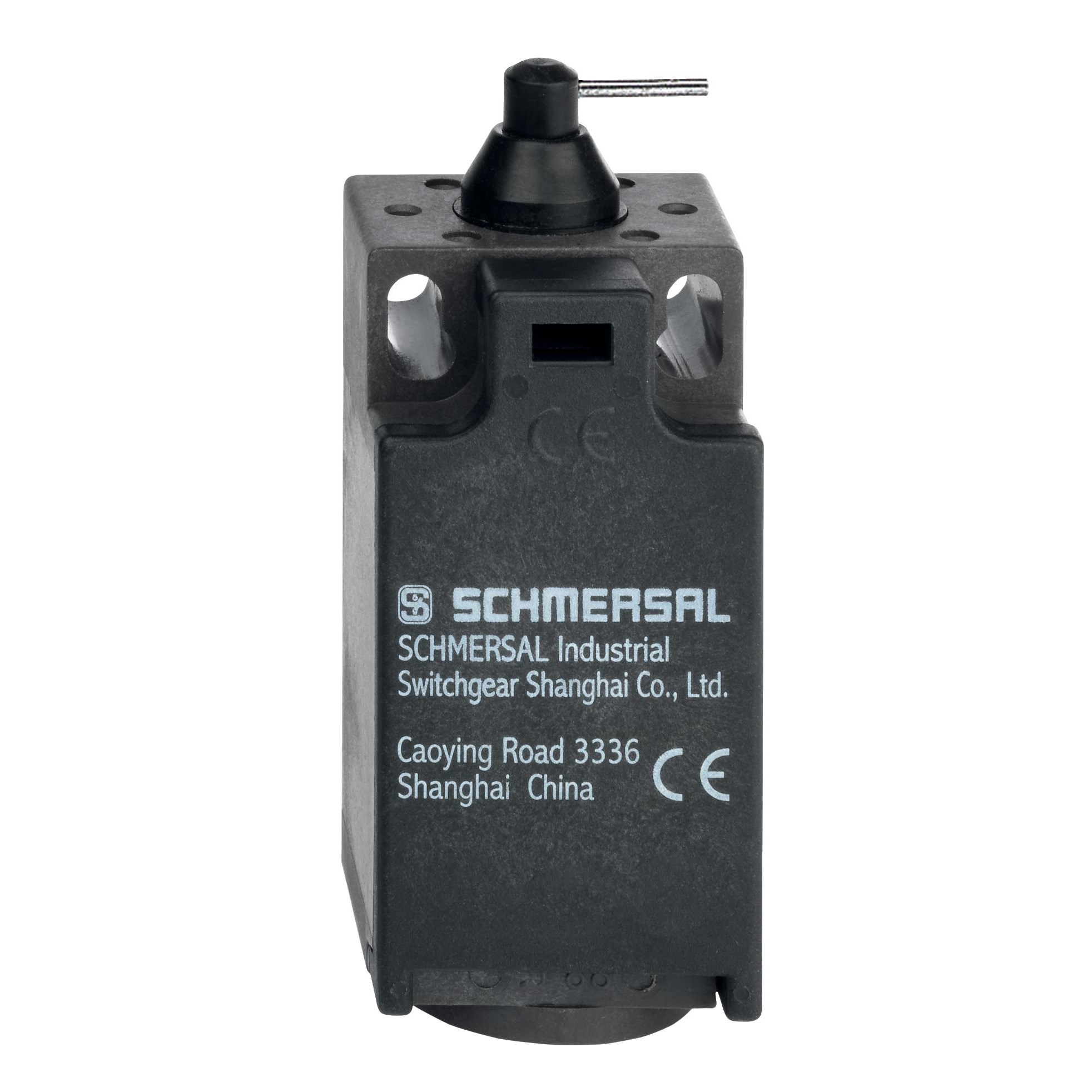

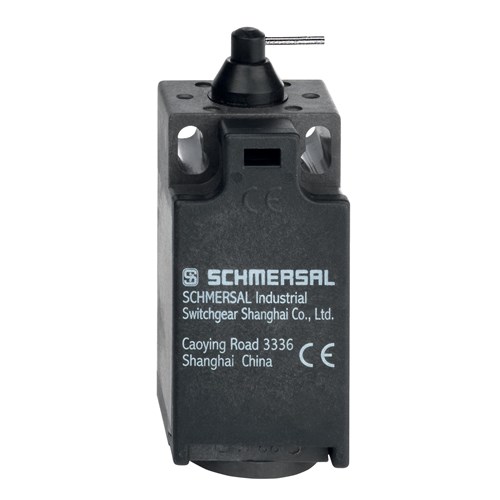

Schmersal 151110624 Position Switch with Safety Function 24VDC

Product Code: 151110624

  • Operates at 24 VDC with 4 A and 1 A current ratings
  • High durability with 20 million mechanical cycles
  • Robust IP67-rated glass fibre reinforced plastic housing
  • Wide operational temp range: -30 to 80°C
  • Complies with EN IEC 60947-5-1, EN ISO 13849-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Plunger
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
30mm
Height
73.5mm
Weight
0.05kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C
