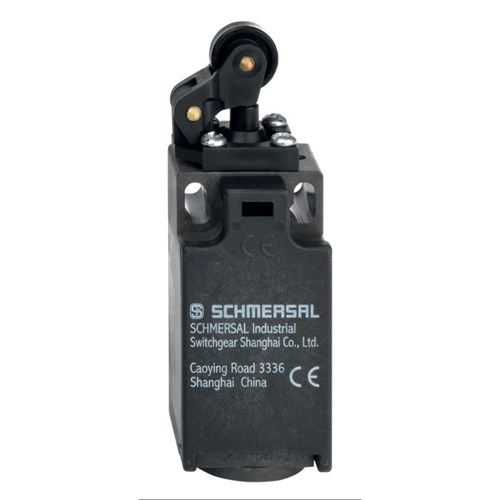

Schmersal 151108149 Limit Switch 2NC

Product Code: 151108149

  • Dual NC contact configuration for safety.
  • Durable plastic housing, glass fibre reinforced.
  • High protection with IP65/IP67 rating.
  • Operates in -30 to 80°C temperature range.
  • Complies with BG-GS and IEC standards.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Offset roller lever
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
30mm
Height
89.5mm
Weight
0.055kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
