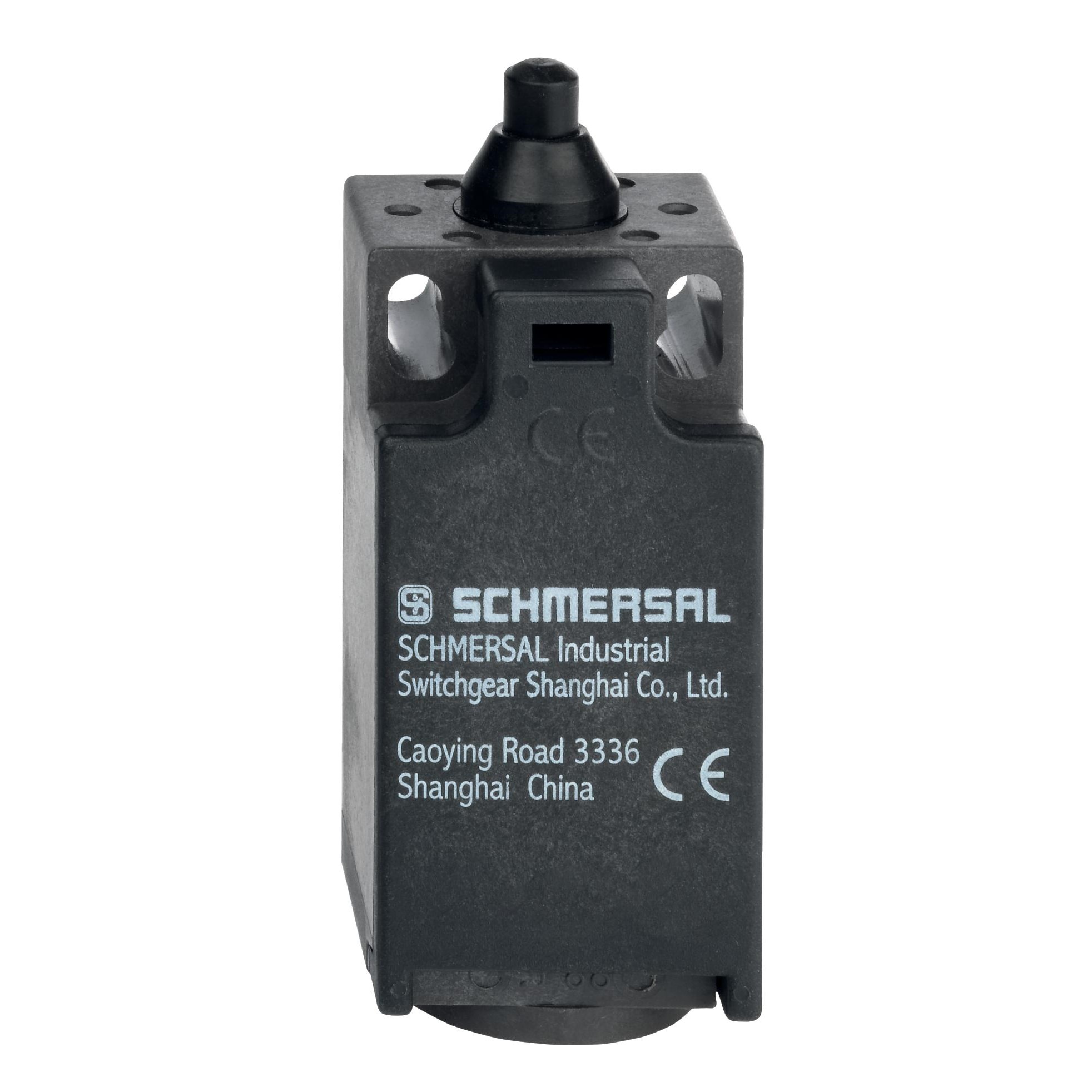

Schmersal 151102243 Position Switch with Safety Function 230VAC

Product Code: 151102243

  • Rated for 230 VAC and 4 A
  • Durable thermoplastic housing
  • IP65/IP67 protection rating
  • Operates in -30 to 80°C range
  • Offset roller lever actuator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Offset roller lever
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
30mm
Height
89.5mm
Weight
0.055kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
