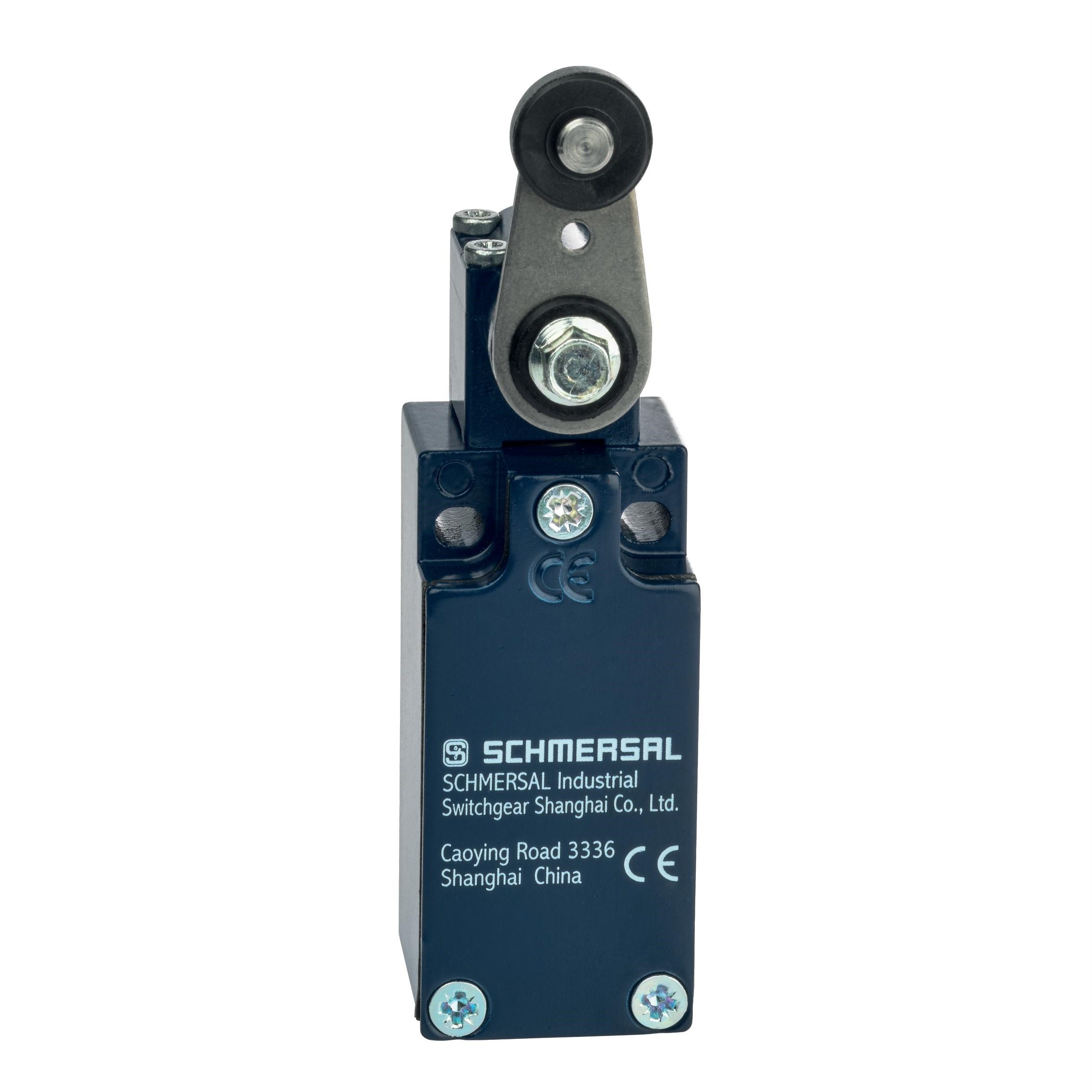

Schmersal 151095086 Position Switch 230VAC 1NO+1NC

Product Code: 151095086

  • Metal, die-cast zinc housing for durability
  • IP65/IP67 protection against dust and water
  • Operates in -30 to 80°C temperature range
  • Snap action with roller lever actuator
  • Complies with EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
46mm
Height
110.5mm
Weight
0.211kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C
