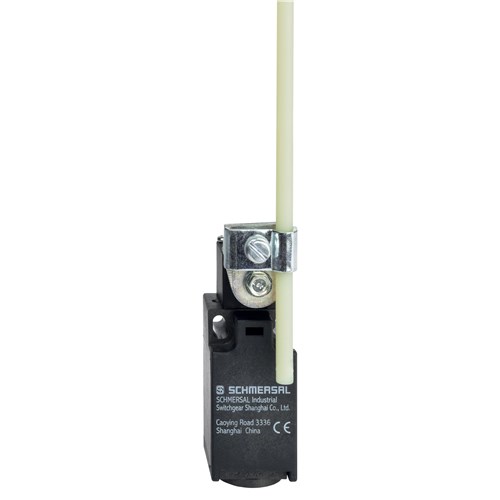

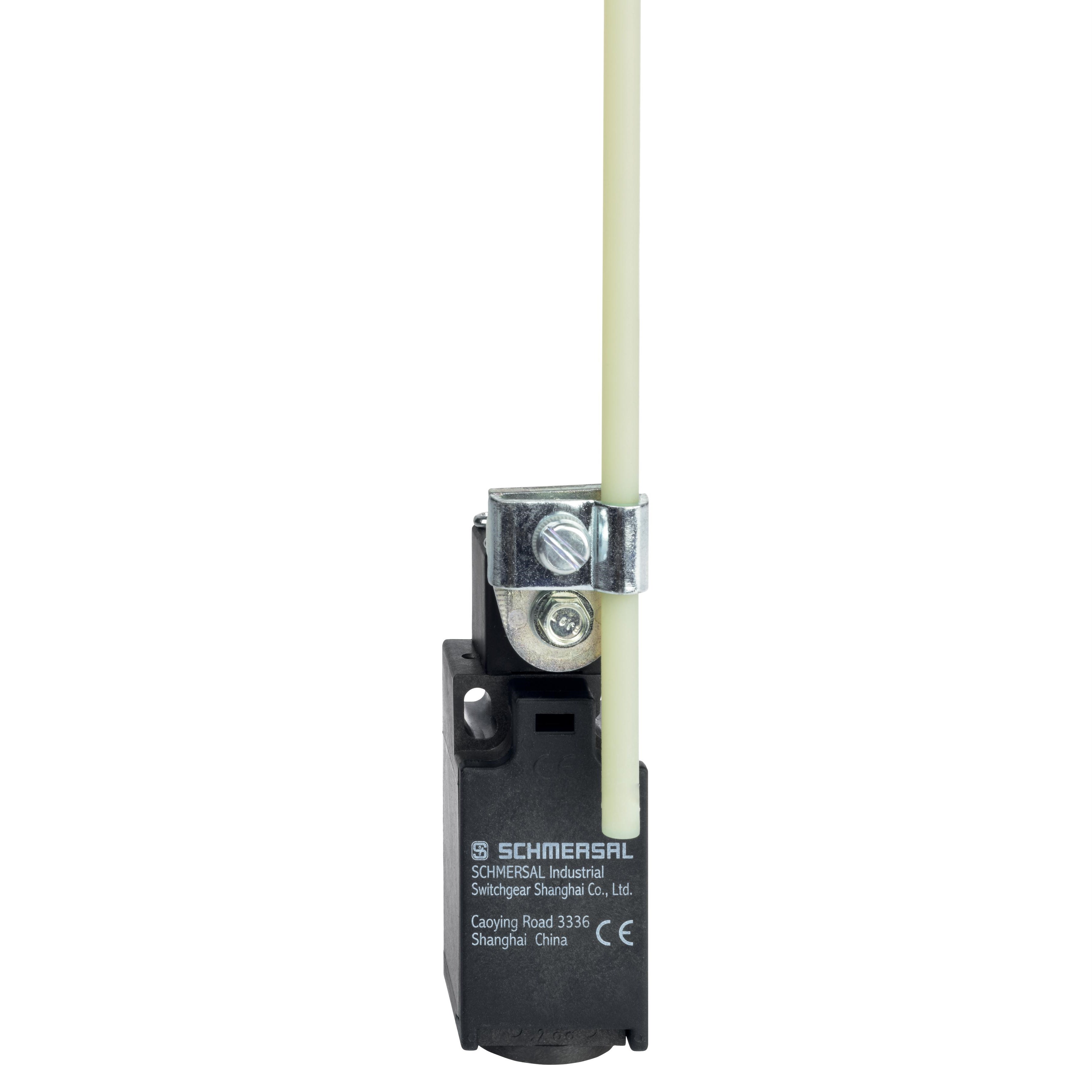

Schmersal 151092343 Position Switch with Safety Function 240VAC, 24VDC NC

Product Code: 151092343

  • Rated for 240 VAC and 24 VDC
  • Durable with 20 million cycles
  • IP67 protection against dust/water
  • Operates in -30 to 80°C range
  • Complies with EN IEC & ISO standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Rod lever
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
43.5mm
Height
96.5mm
Weight
0.085kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C
