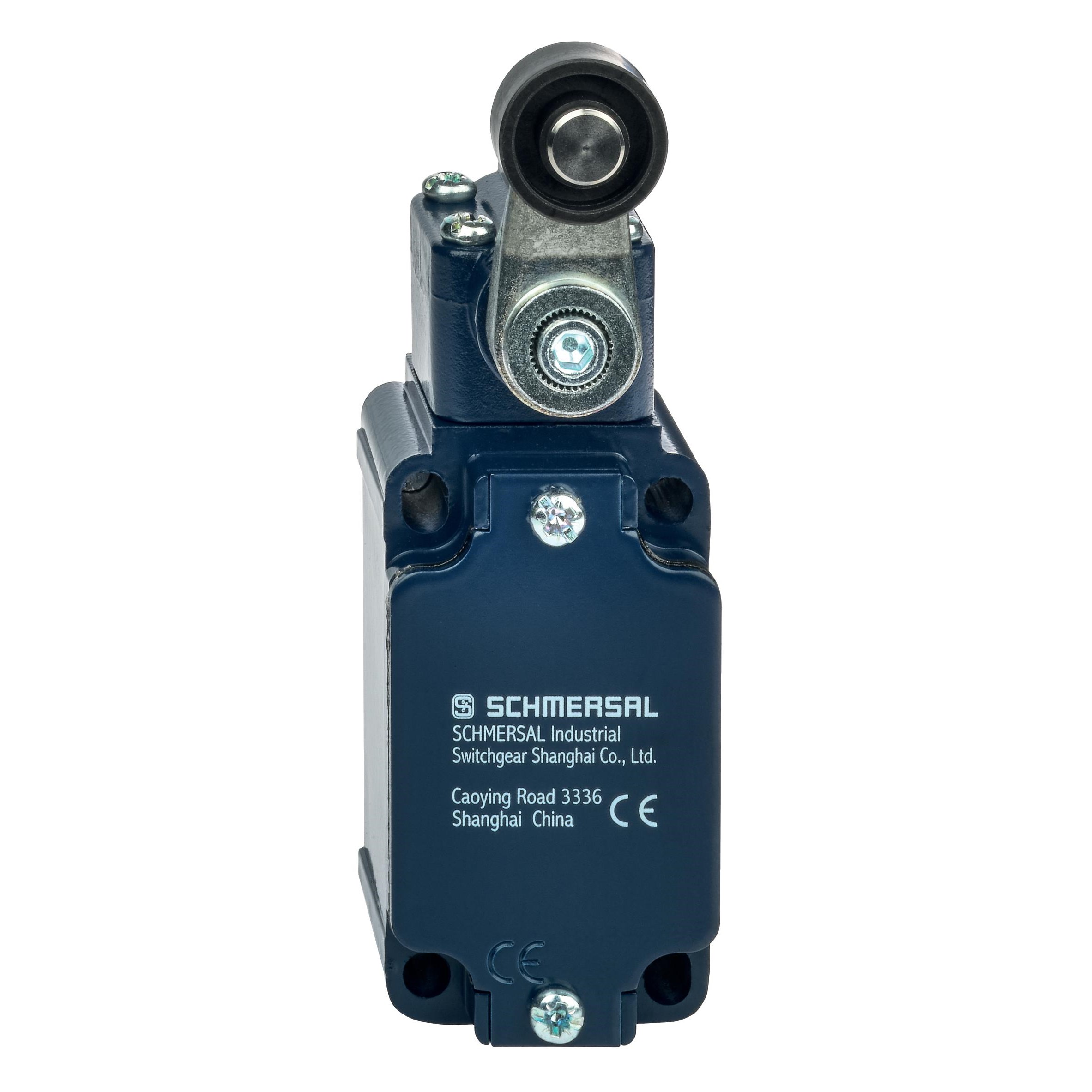

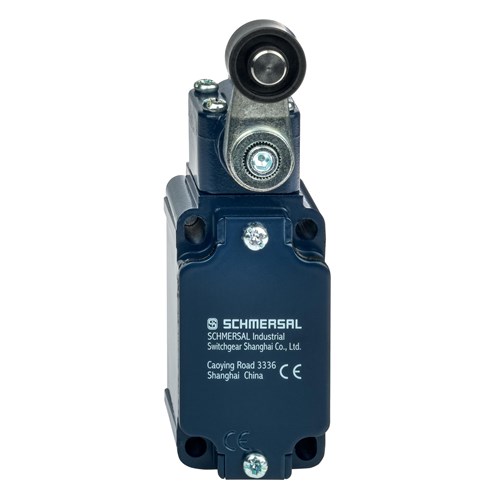

Schmersal 151085744 Position Switch with Safety Function 230VAC, 24VDC

Product Code: 151085744

  • Supports 230 VAC & 24 VDC, rated at 4 A
  • High mechanical life of 30 million cycles
  • Operates efficiently in -30 to 80°C range
  • Complies with EN ISO 13849-1 standards
  • Roller lever for fast actuating speed of 2.5 m/s
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever

Dimensions & Physical Data

Depth
60.6mm
Weight
0.322kg
Width
40.5mm

Environmental

Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
