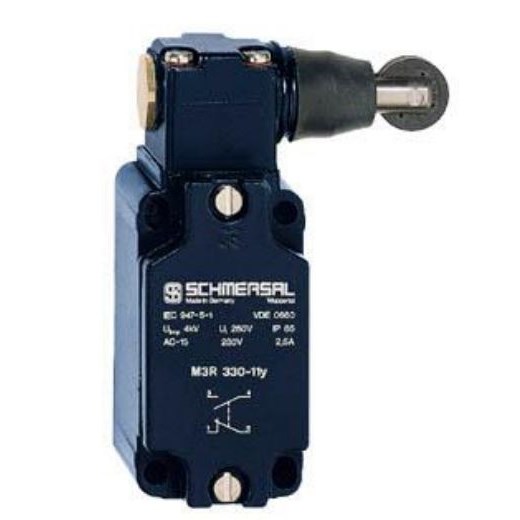

Schmersal 131211075 Position Switch

Product Code: 131211075

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M 330 plunger S

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V AC
Rated Current (In)
2.5A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
6A

Mechanical

Actuator Type
Roller Plunger
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
40mm
Height
103.5mm
Weight
0.302kg
Width
75.3mm

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 160°C
