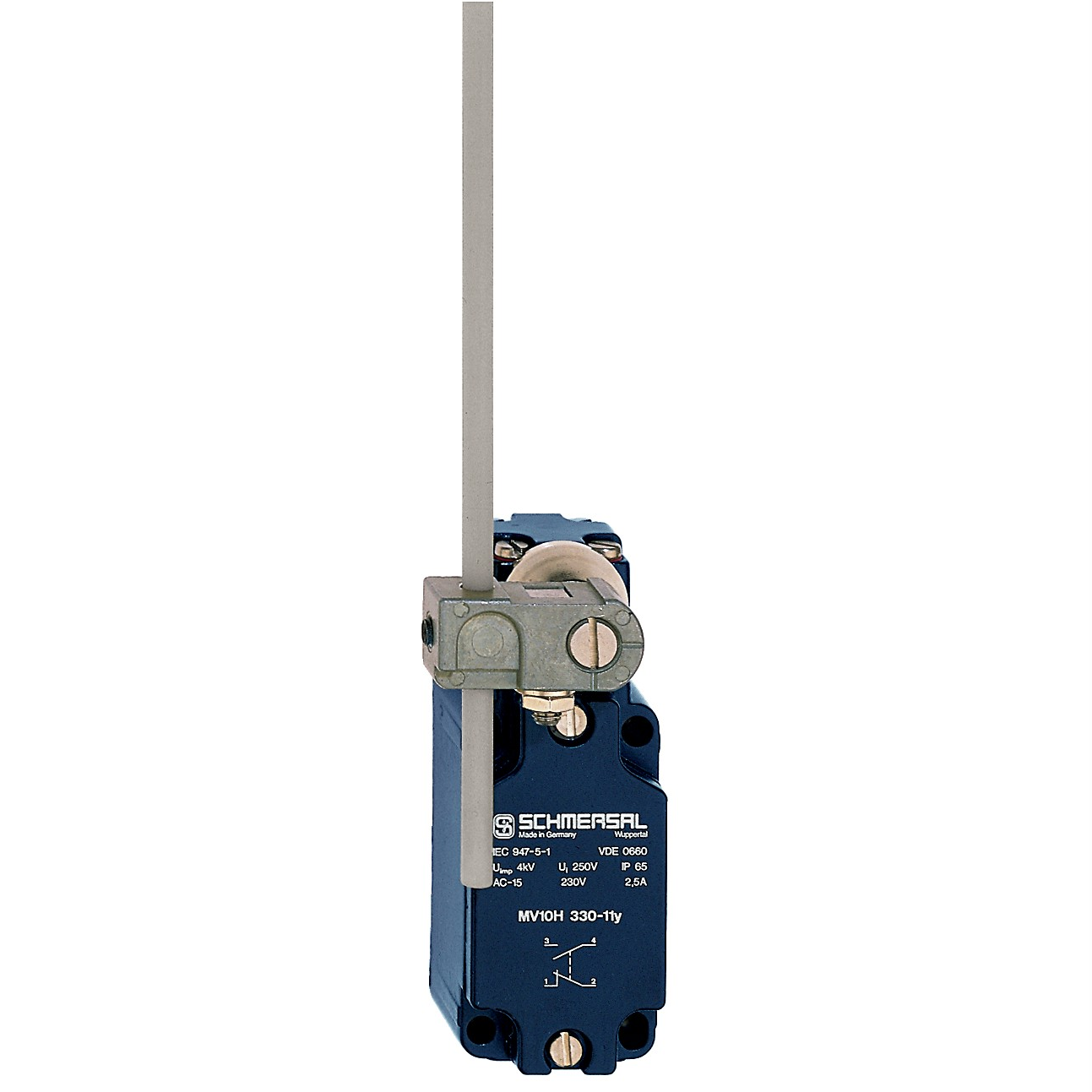

POSITION SWITCH 1NC 1NO ROD LEVER 13AWG SCH MV10H 330-11Y-G24-1348

Product Code: 131179998

  • 230 VAC, 2.5 A rated for reliable performance
  • Durable die-cast light alloy housing
  • IP65 protection against dust and water
  • Snap action switch with rod lever actuator
  • Dual contacts: 1NO+1NC configuration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M 330

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
2.5A (Utilisation Cat AC-15)
Rated Voltage (Ur)
230 VAC (Utilisation Cat AC-15)
Terminal Type
Screw terminals

Mechanical

Actuator Type
Rod lever
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
40mm
Height
276mm
Weight
0.489kg
Width
40mm

Environmental

Operating Temperature
-30°C to 90°C
IP Rating
IP65

Documents

IPD Product Catalogue V17
