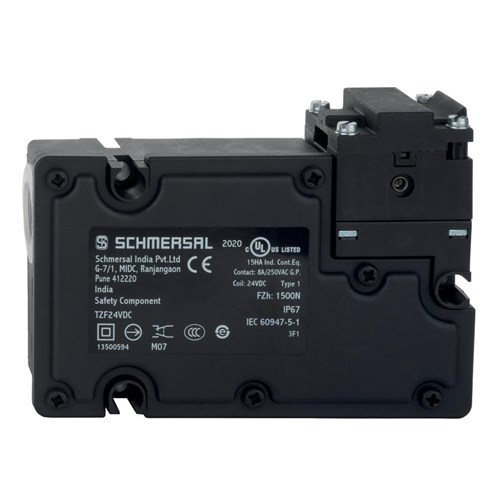

Schmersal 131172785 Solenid Interlock Switch 24VAC/VDC

Product Code: 131172785

  • Compatible with 24 VAC/VDC systems
  • Durable with 1M mechanical cycles
  • IP67 protection for harsh conditions
  • Complies with EN ISO 13849-1 standards
  • Compact size: 41mm x 92.5mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal

Electrical

Rated Current (In)
0.166667
Rated Voltage (Ur)
24 V DC

Mechanical

Cable Entry
1 x M20 x 1.5
Guard Locking Force
1,500 N
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
41 mm
Height
92.5 mm
Weight
660 g
Width
129 mm

Environmental

Operating Temperature
0 to 50 °C
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
