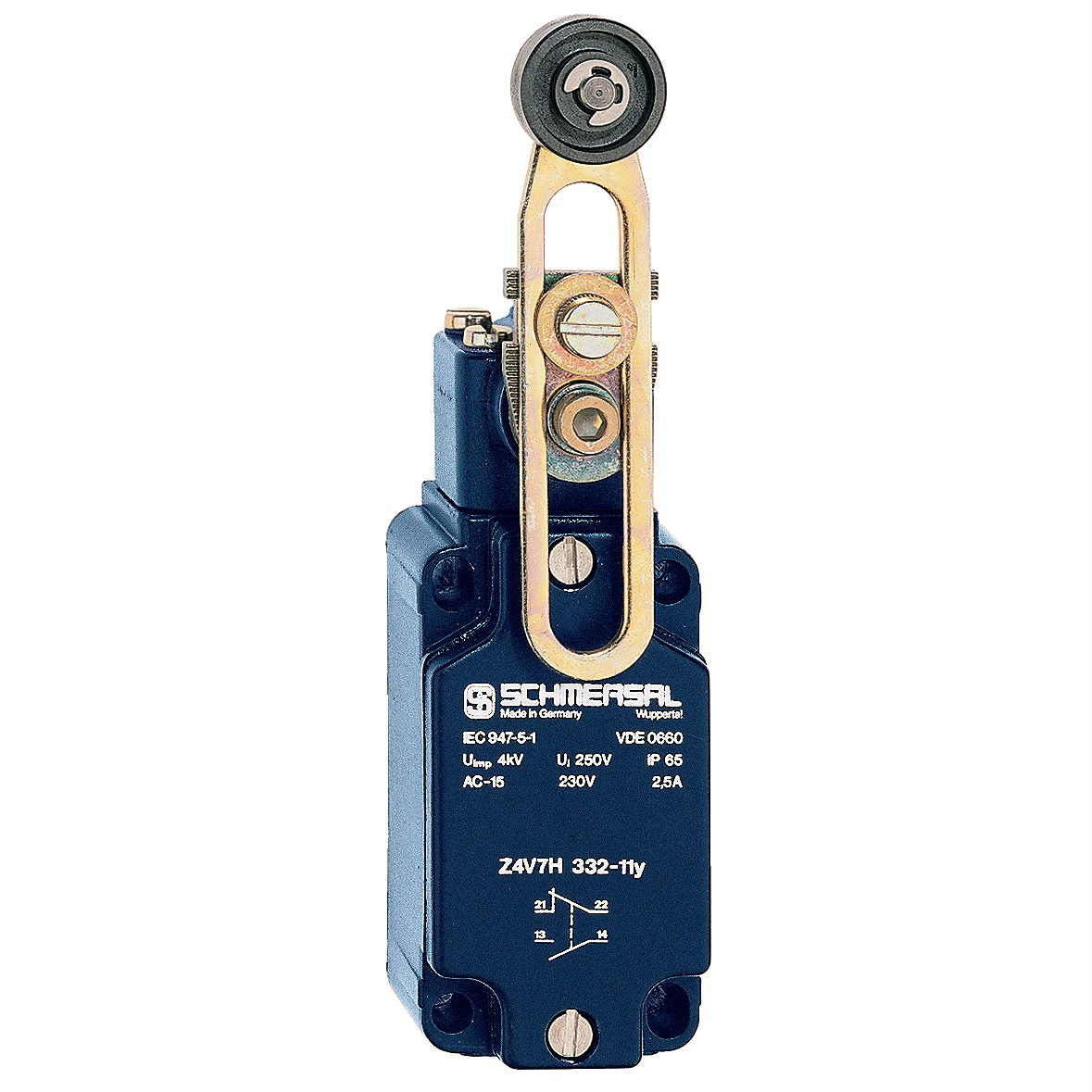

Schmersal 131169905 Position Switch

Product Code: 131169905

  • Durable die-cast light alloy housing
  • High protection rating of IP65
  • Complies with BG-GS-ET-15, EN IEC 60947-5-1 standards
  • Compact size: 57mm L x 40mm W x 173.5mm H
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Thermal Test Current
6A

Mechanical

Actuator Type
Roller lever
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
57mm
Height
173.5mm
Weight
0.317kg
Width
40mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
