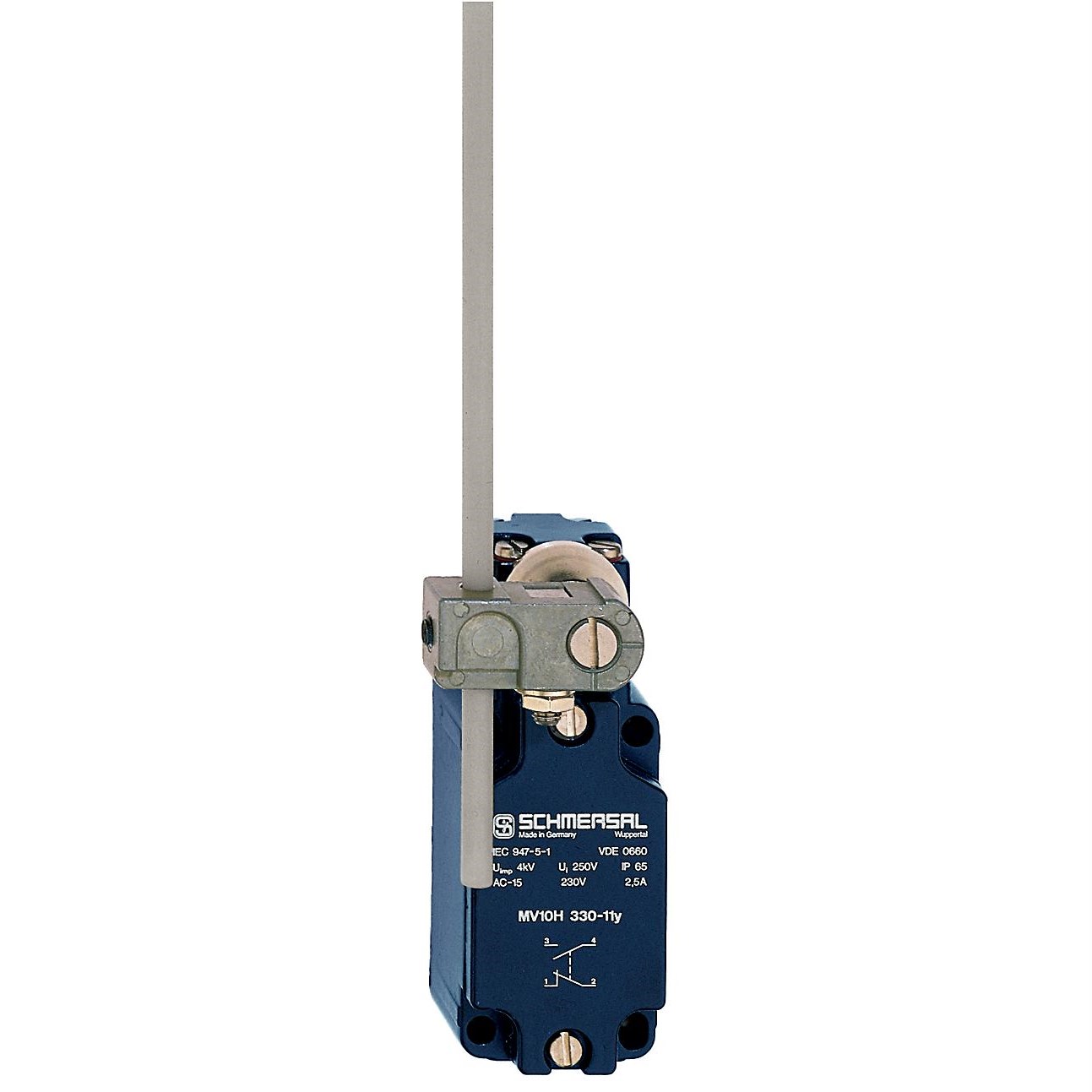

Schmersal 131168057 Position Switch Rod Lever 1NO-1NC Die Cast Light Alloy Painted Silver Contact

Product Code: 131168057

  • Snap action switching for quick response
  • Durable die-cast light alloy housing
  • IP65 rated for dust and water protection
  • Complies with ENISO 13849-1 standards
  • Rod lever actuator for precise control
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current
6 A
Rated Voltage
500 V
Terminal Type
Screw terminals M20 x 1.5

Mechanical

Actuator Type
Rod lever
Housing Material
Light-alloy diecast, painted
Material
Silver (Contact)

Dimensions & Physical Data

Depth
40 mm
Height
276 mm
Weight
0.388 kg
Width
40 mm

Environmental

IP Rating
IP65
Ambient Temperature
-30 ... +90 °C
