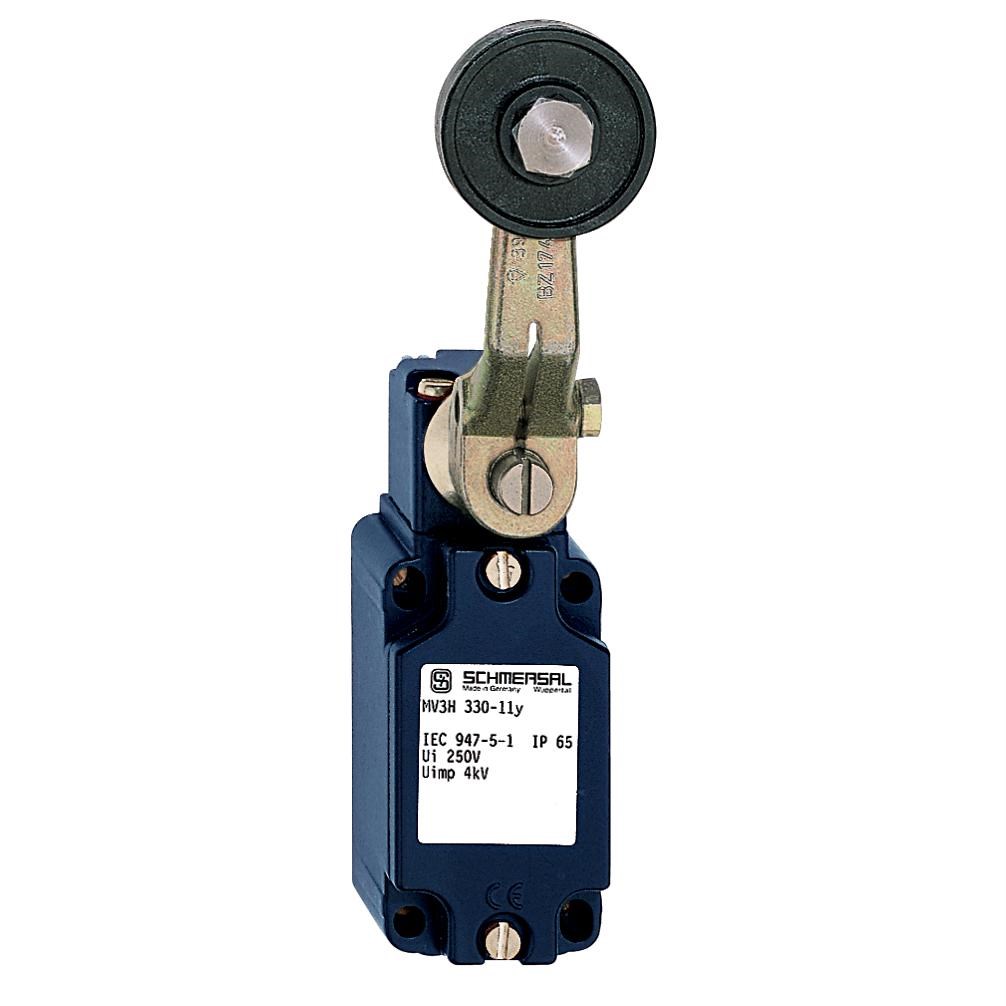

Schmersal 131168052 Position Switch Roller Lever 1NO-1NC Die Cast Light Alloy Painted Silver Contact

Product Code: 131168052

  • Rated current of 2A for reliable operation
  • Durable die-cast alloy housing, painted finish
  • IP65 protection against dust and water
  • Complies with ENIEC 60947-5-1 standards
  • Roller lever actuator for precise control
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
335 roller lever

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V AC
Rated Current (In)
2.5A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
6A

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
40mm
Height
175mm
Weight
0.372kg
Width
40mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 90°C

Documents

IPD Product Catalogue V17
