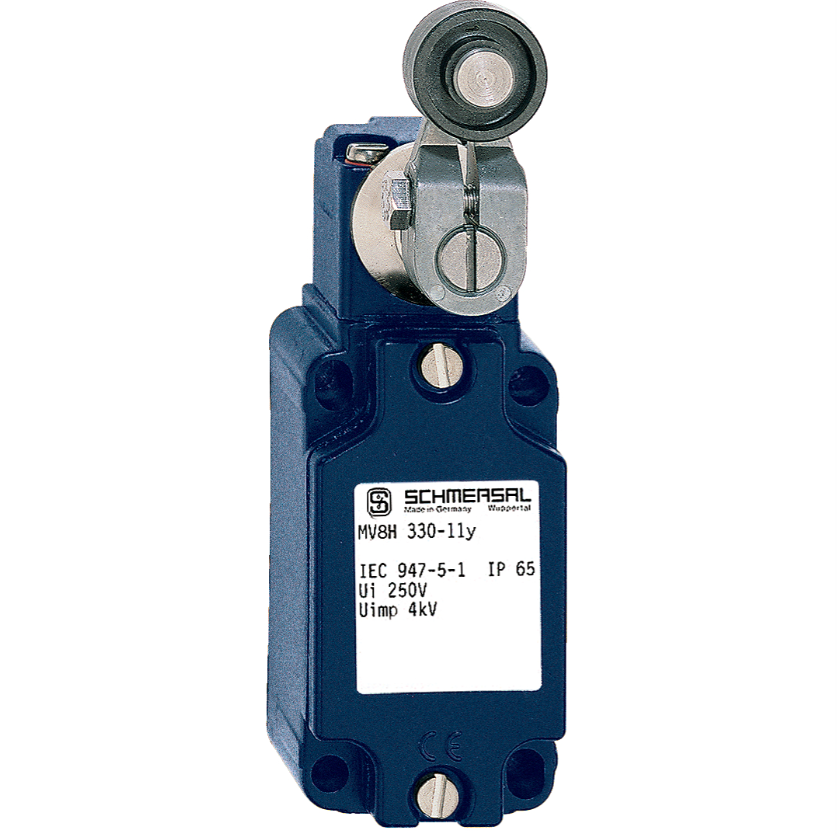

Schmersal 131167334 Position Switch Roller Lever 40mm W Die Cast Light Alloy Painted

Product Code: 131167334

  • Robust die-cast light alloy housing
  • IP65 protection for harsh environments
  • Mechanical switch with roller lever actuator
  • Complies with ENIEC 60947-5-1 standards
  • Compact size: 40mm width, 129.5mm height
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
335 roller lever

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V AC
Rated Current (In)
2.5A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Thermal Test Current
6A

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
40mm
Height
129.5mm
Weight
0.277kg
Width
40mm

Environmental

IP Rating
IP65

Documents

IPD Product Catalogue V17
