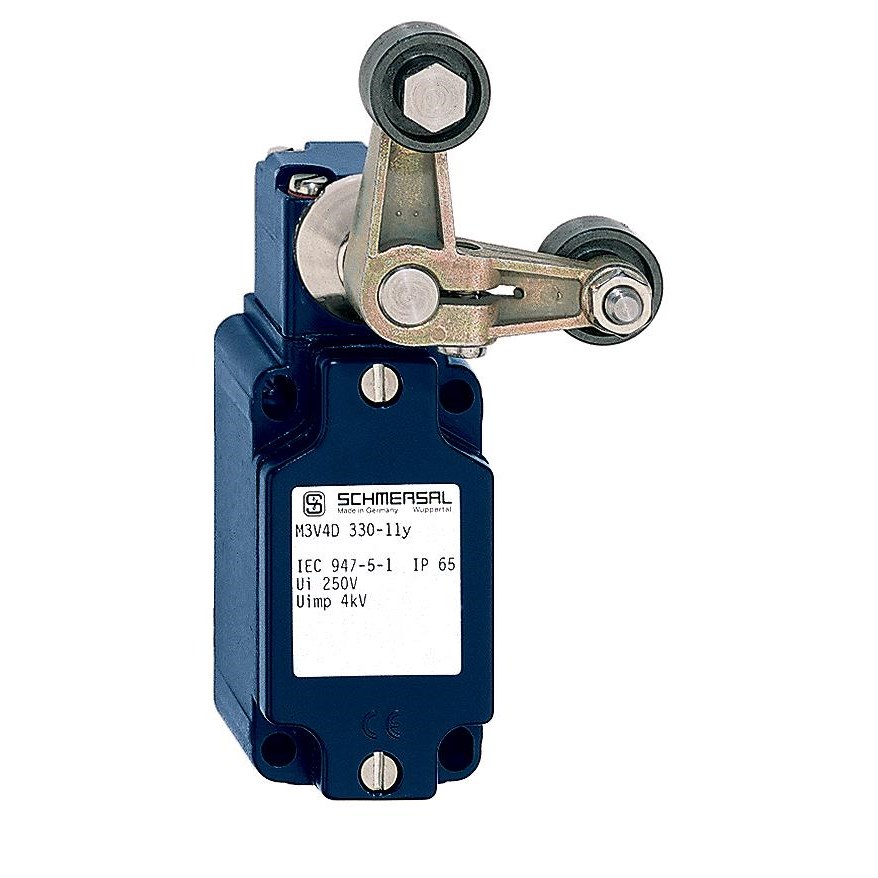

Schmersal 131165920 Position Switch ork Roller Lever Die Cast Light Alloy Painted Silver Contact

Product Code: 131165920

  • Durable die-cast light alloy housing
  • IP65 protection against dust and water
  • Meets ENISO 13849-1 standards
  • Mechanical switch with fork roller lever actuator
  • Operates at 230 VAC, 2.5 A
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M 330 forked roller lever

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V AC
Rated Current (In)
2.5A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Thermal Test Current
6A

Mechanical

Actuator Type
Forked Roller Lever
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
40mm
Height
120mm
Weight
0.341kg
Width
84mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 90°C

Documents

IPD Product Catalogue V17
