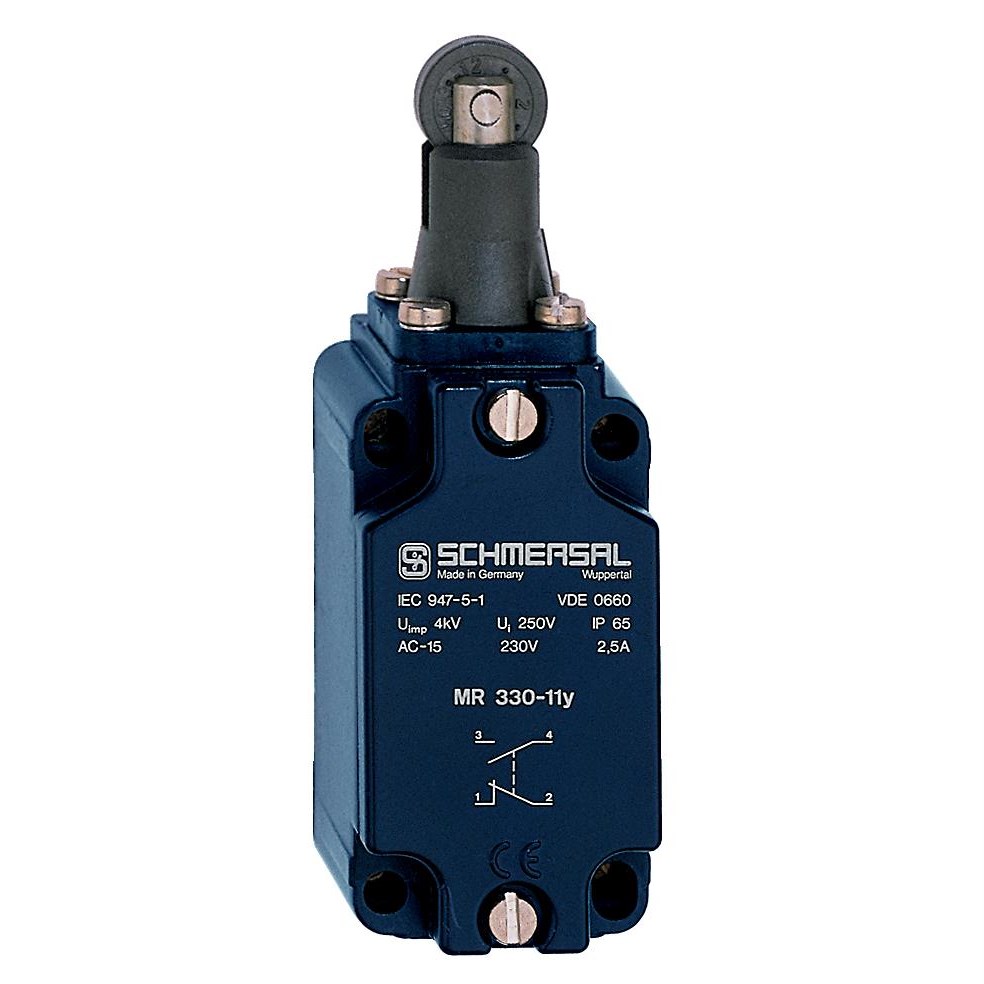

Schmersal 131165677 Position Switch Roller Plunger Die Cast Light Alloy Painted Silver Contact

Product Code: 131165677

  • Rated current of 6 A for efficient performance
  • Durable die-cast light alloy housing
  • IP65 protection against dust and water
  • Complies with ENIEC 60947-5-1 standards
  • Roller plunger actuator for precise control
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M 330 plunger S

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V AC
Rated Current (In)
2.5A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Thermal Test Current
6A

Mechanical

Actuator Type
Roller Plunger
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
40mm
Height
116.5mm
Weight
0.214kg
Width
40mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 90°C
