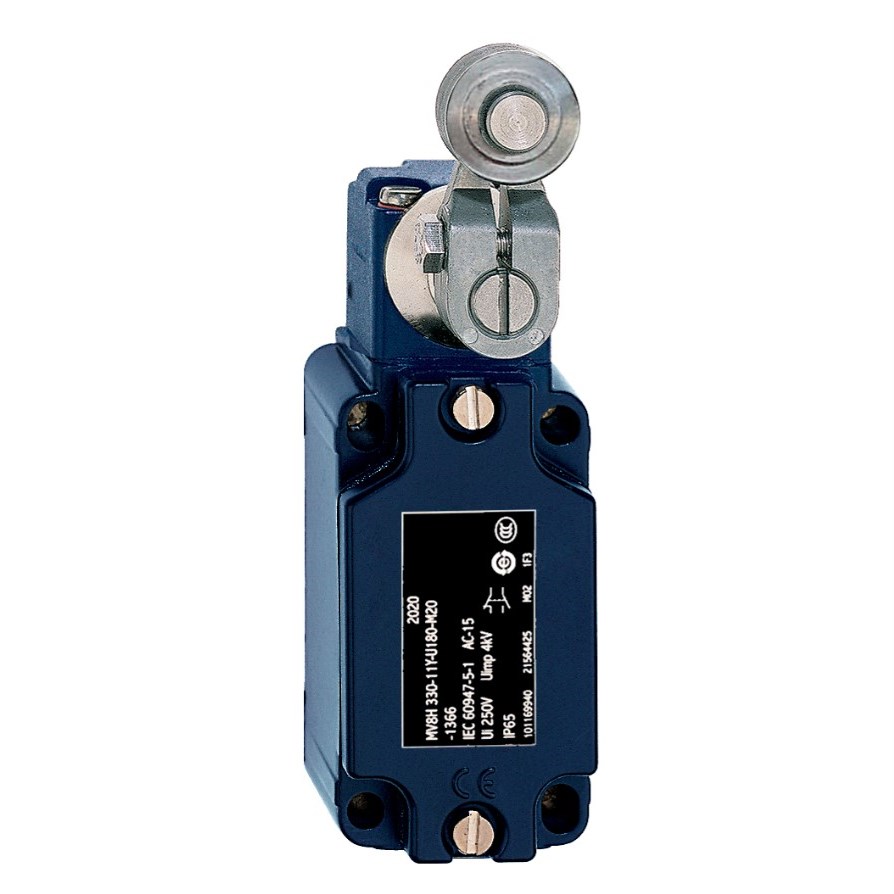

Schmersal 131164341 Position Switch Light Alloy Painted 40mm Lx40mmWx136.5mmH

Product Code: 131164341

  • Durable die-cast light alloy housing
  • High protection rating of IP65
  • Complies with ENIEC 60947-5-1 standards
  • Compact size: 40x40x136.5 mm
  • Reliable snap action switching
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M 330

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V AC
Rated Current (In)
2.5A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Thermal Test Current
6A

Mechanical

Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
40mm
Height
136.5mm
Weight
0.283kg
Width
40mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 90°C

Documents

IPD Product Catalogue V17
