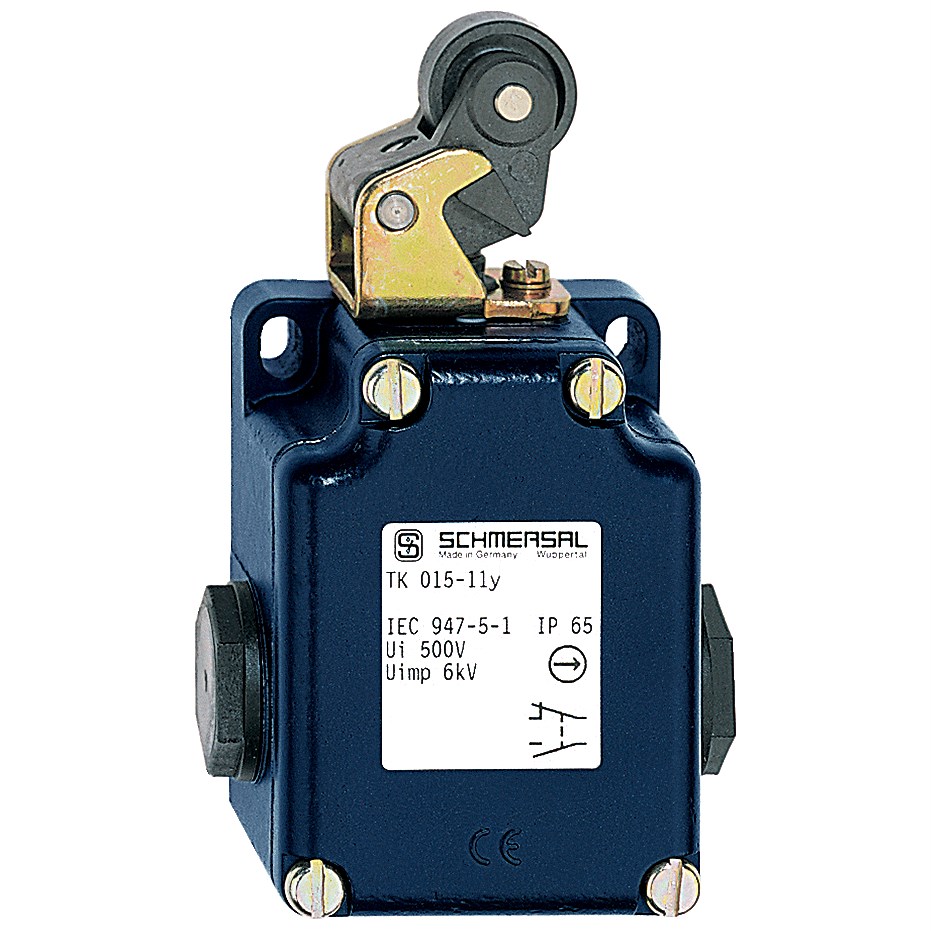

Schmersal 131164045 Position Switch Offset Roller Lever 2NO-2NC Metal

Product Code: 131164045

  • Metal housing for durability
  • IP65 rated for dust and water protection
  • Complies with ENIEC 60947-5-1 standards
  • Features 2NO+2NC contact configuration
  • Offset roller lever actuator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
17

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
2.5A
Rated Voltage (Ur)
400V AC
Terminal Type
Screw terminals M20 x 1.5
Change-Over Contacts
0

Mechanical

Actuator Type
Offset roller lever
Contact Material
Silver
Housing Material
Painted light-alloy diecast

Dimensions & Physical Data

Depth
43mm
Height
168mm
Weight
0.39kg
Width
67mm

Environmental

Operating Temperature
-40°C to 90°C
IP Rating
IP65

Documents

IPD Product Catalogue V17
