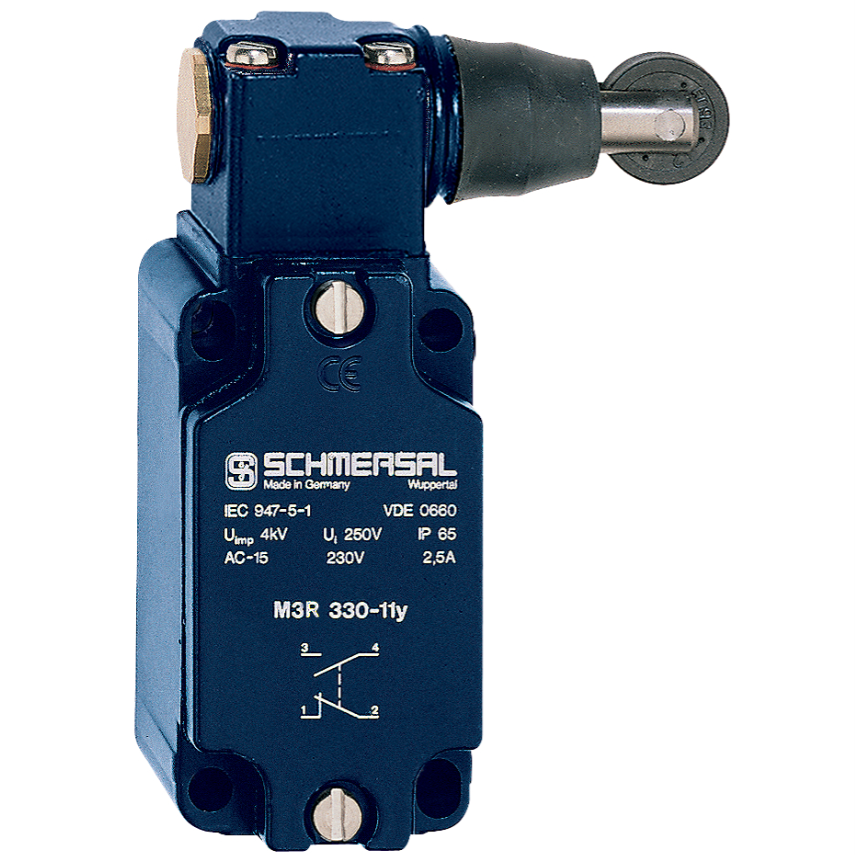

Schmersal 131161735 Position Switch Roller Plunger 1NO-1NC 75.3mm W Die Cast Light Alloy Painted

Product Code: 131161735

  • Durable die-cast light alloy housing
  • IP65 protection for harsh environments
  • Snap action switching mechanism
  • Roller plunger actuator for precise operation
  • Complies with ENIEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M 330 plunger S

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V AC
Rated Current (In)
2.5A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
6A

Mechanical

Actuator Type
Roller Plunger
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
40mm
Height
103.5mm
Weight
0.279kg
Width
75.3mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 90°C

Documents

IPD Product Catalogue V17
