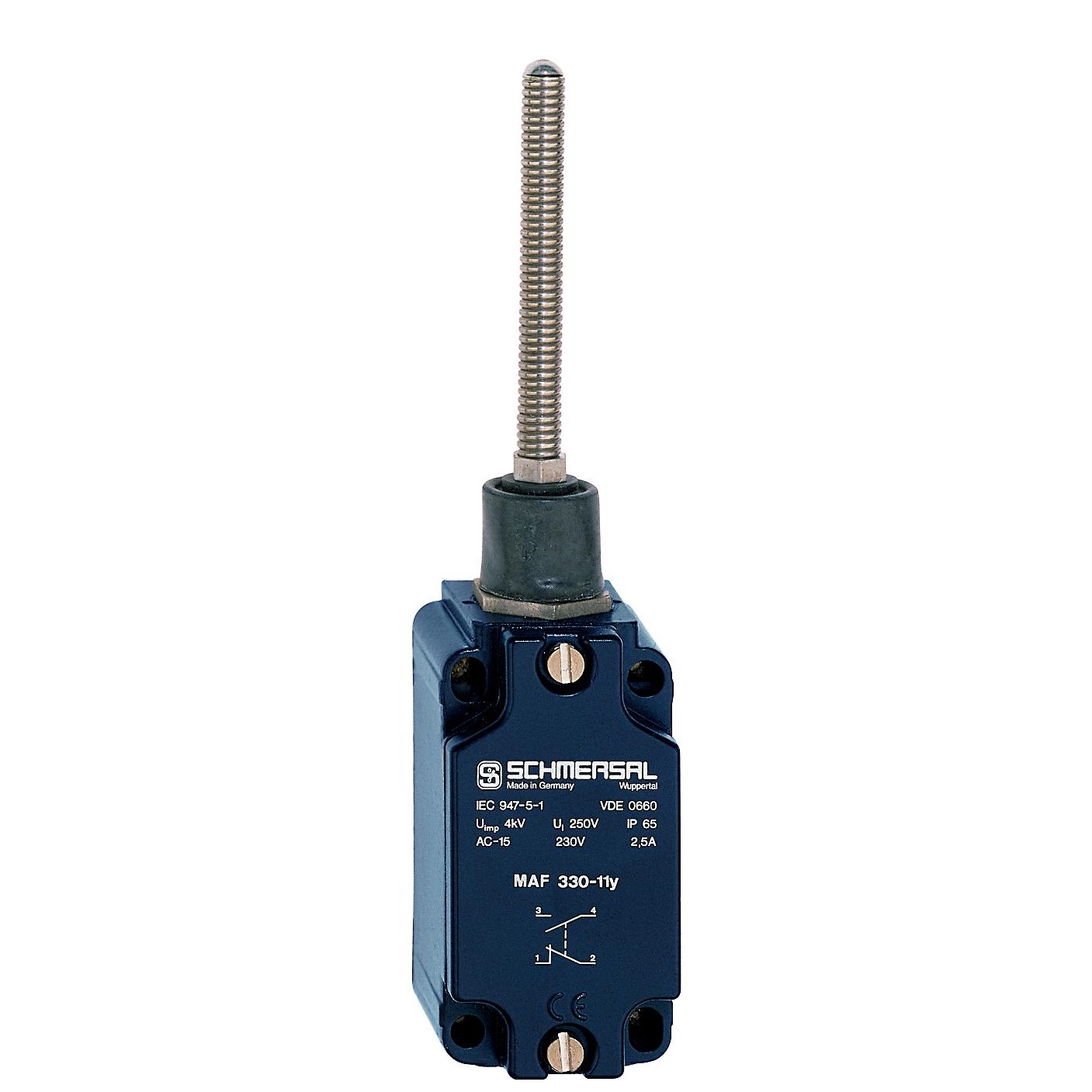

POSITION SW 1NO/1NC IP65 SCHMERSAL MAF 330-11Y-M20

Product Code: 131160633

  • Compact die-cast light alloy housing
  • IP65 rated for dust and water protection
  • Snap action switching with 1NO+1NC contacts
  • Spring rod lever actuator for precise control
  • ENISO 13849-1 compliant
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M 330

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
2.5A (Utilisation Cat AC-15)
Rated Voltage (Ur)
230 VAC (Utilisation Cat AC-15)
Terminal Type
Screw terminals

Mechanical

Actuator Type
Spring rod lever
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
40mm
Height
184.5mm
Weight
0.251kg
Width
40mm

Environmental

Operating Temperature
-30°C to 90°C
IP Rating
IP65

Documents

IPD Product Catalogue V17
