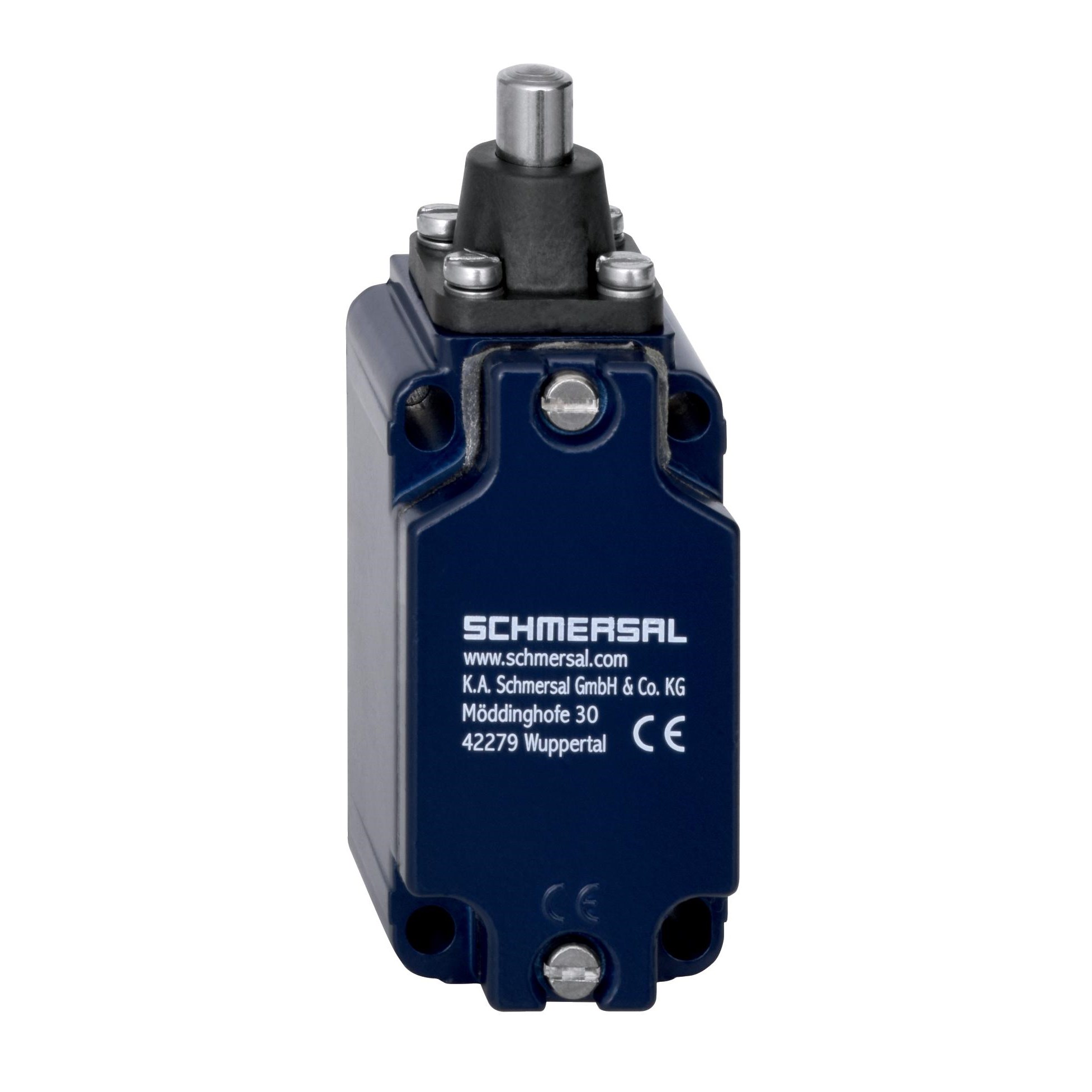

Schmersal 131160614 Position Switch Plunger 1NO-1NC Die Cast Light Alloy Painted Silver Contact

Product Code: 131160614

  • Rated for 230 VAC, 2 A operation
  • Durable die-cast light alloy housing
  • IP65 protection against dust and water
  • Complies with ENIEC 60947-5-1 standards
  • Plunger actuator with snap action switching
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M 330 plunger S

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V AC
Rated Current (In)
2.5A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
6A

Mechanical

Actuator Type
Plunger
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
40mm
Height
87mm
Weight
0.217kg
Width
40mm

Environmental

IP Rating
IP65

Documents

IPD Product Catalogue V17
