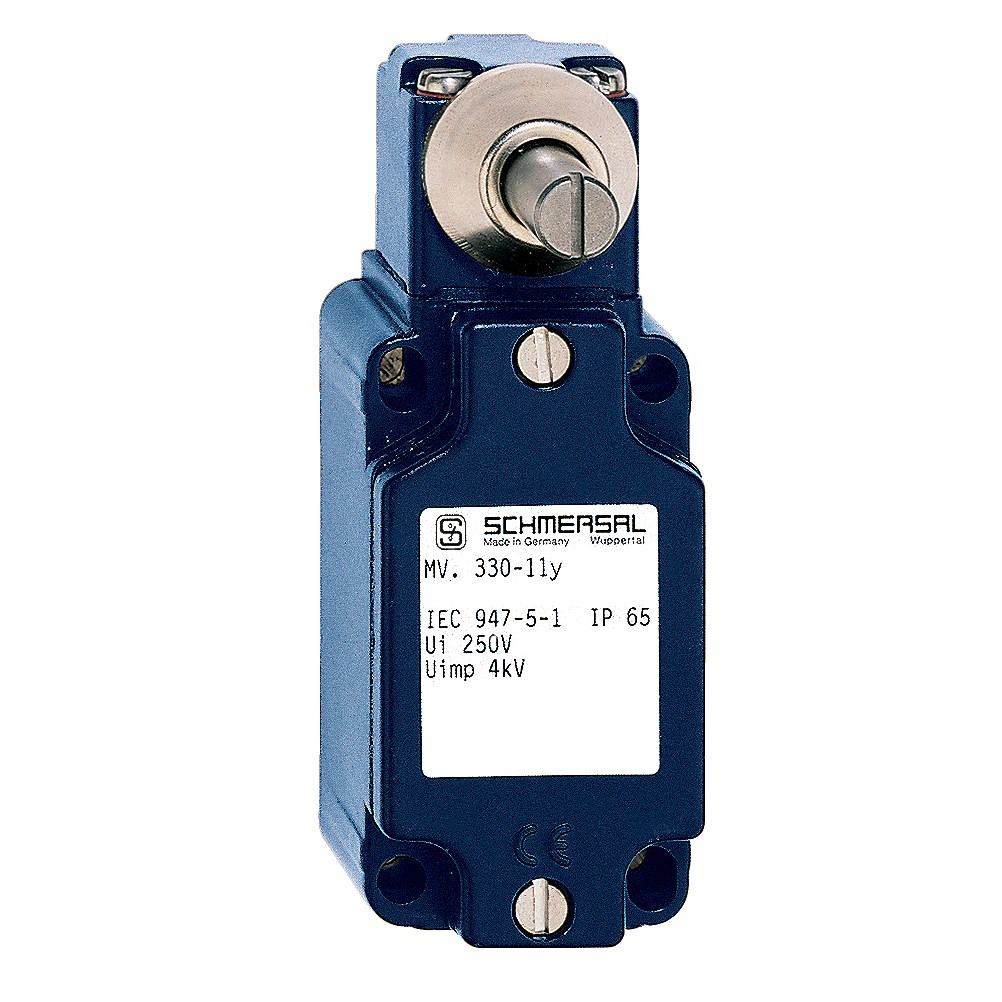

Schmersal 131160611 Roller Lever Limit Switch Die Cast Light Alloy Painted

Product Code: 131160611

  • Rated for 6 A current
  • Durable die-cast alloy housing
  • IP65 protection rating
  • Complies with EN IEC 60947-5-1
  • Silver contact material for reliability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
335 roller lever

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V AC
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
250V AC (AC-15)
Thermal Test Current
`

Mechanical

Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
40mm
Height
136.5mm
Weight
0.296kg
Width
40mm

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 160°C

Documents

IPD Product Catalogue V17
