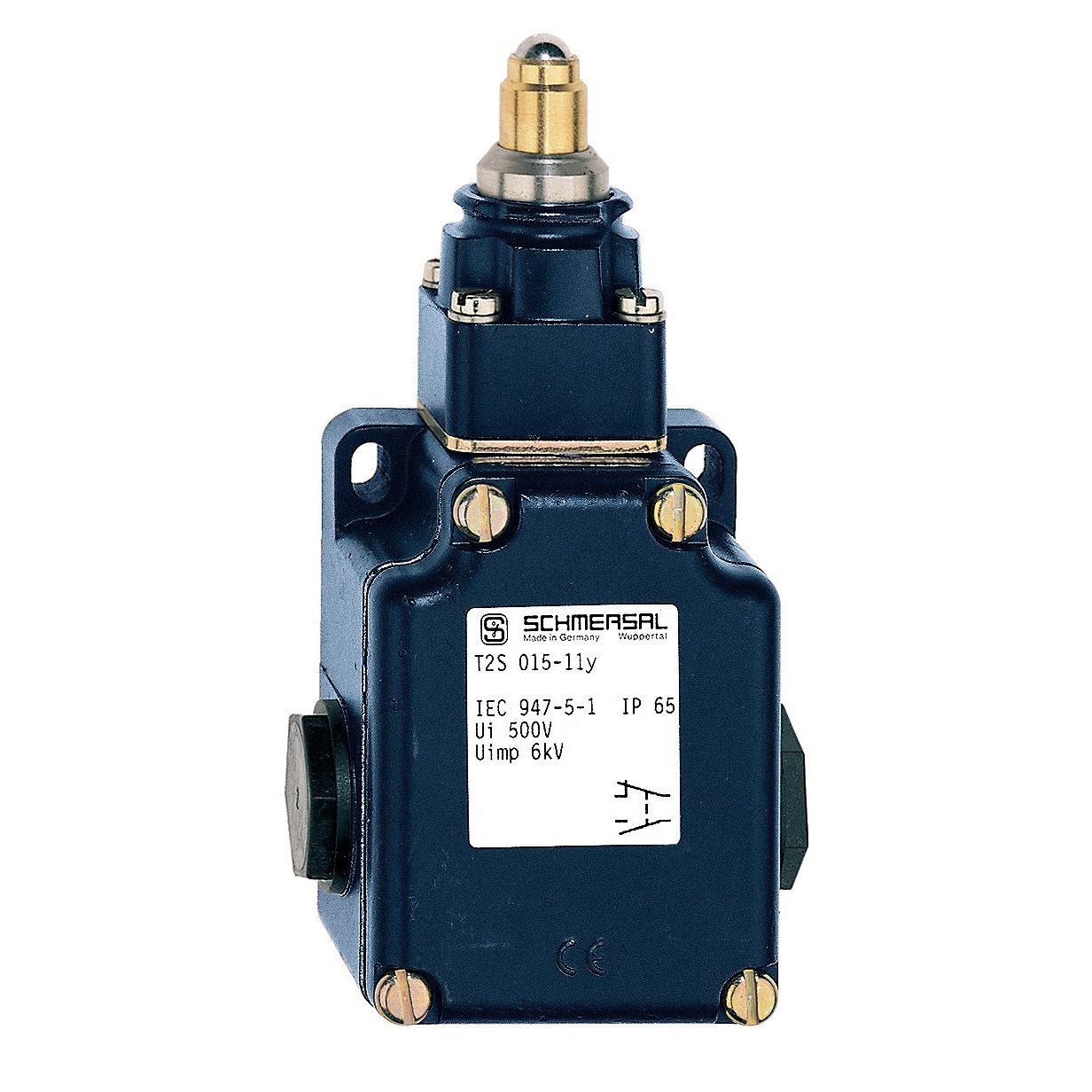

Schmersal 131160497 Position Switch Plunger 1NO-1NC Die Cast Light Alloy Painted Silver Contact

Product Code: 131160497

  • Rated for 400 VAC and 2 A
  • Durable die-cast light alloy housing
  • IP65 protection against dust and water
  • Complies with ENIEC 60947-5-1 standards
  • Snap action switching with plunger actuator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
015 plunger S

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
10A

Mechanical

Actuator Type
Plunger
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
43mm
Height
130mm
Weight
0.31kg
Width
67mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 90°C
