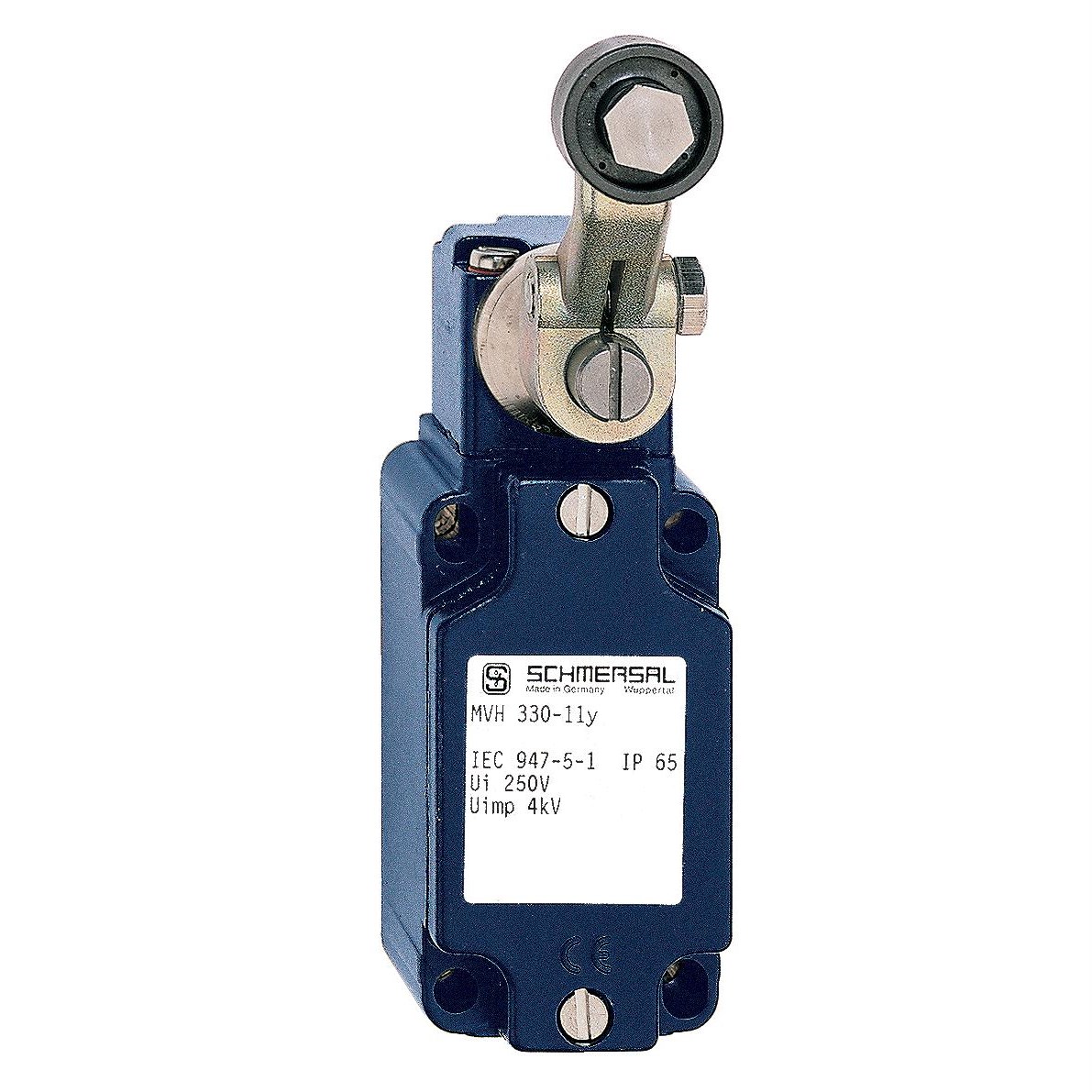

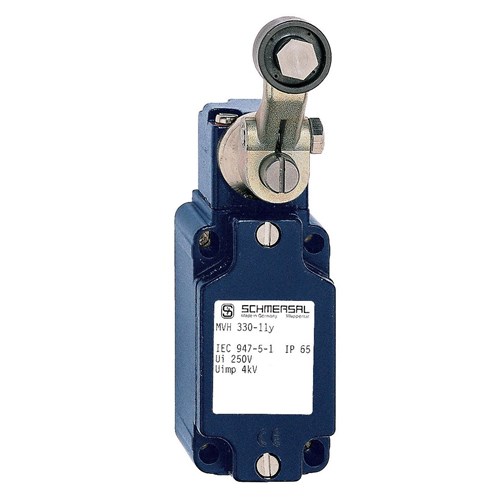

Schmersal 131160129 Position Switch Roller Lever Die Cast Light Alloy Painted Silver Contact

Product Code: 131160129

  • Operates at 230 VAC, 2.5 A
  • Durable die-cast light alloy housing
  • IP65 rated for dust and water protection
  • Mechanical switch with roller lever actuator
  • Complies with ENISO 13849-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M330

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
2.5A
Rated Voltage (Ur)
230V AC
Terminal Type
Screw terminals M20 x 1.5
Change-Over Contacts
0

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Painted light-alloy diecast

Dimensions & Physical Data

Depth
40mm
Height
136.5mm
Weight
0.328kg
Width
40mm

Environmental

IP Rating
IP65

Documents

IPD Product Catalogue V17
