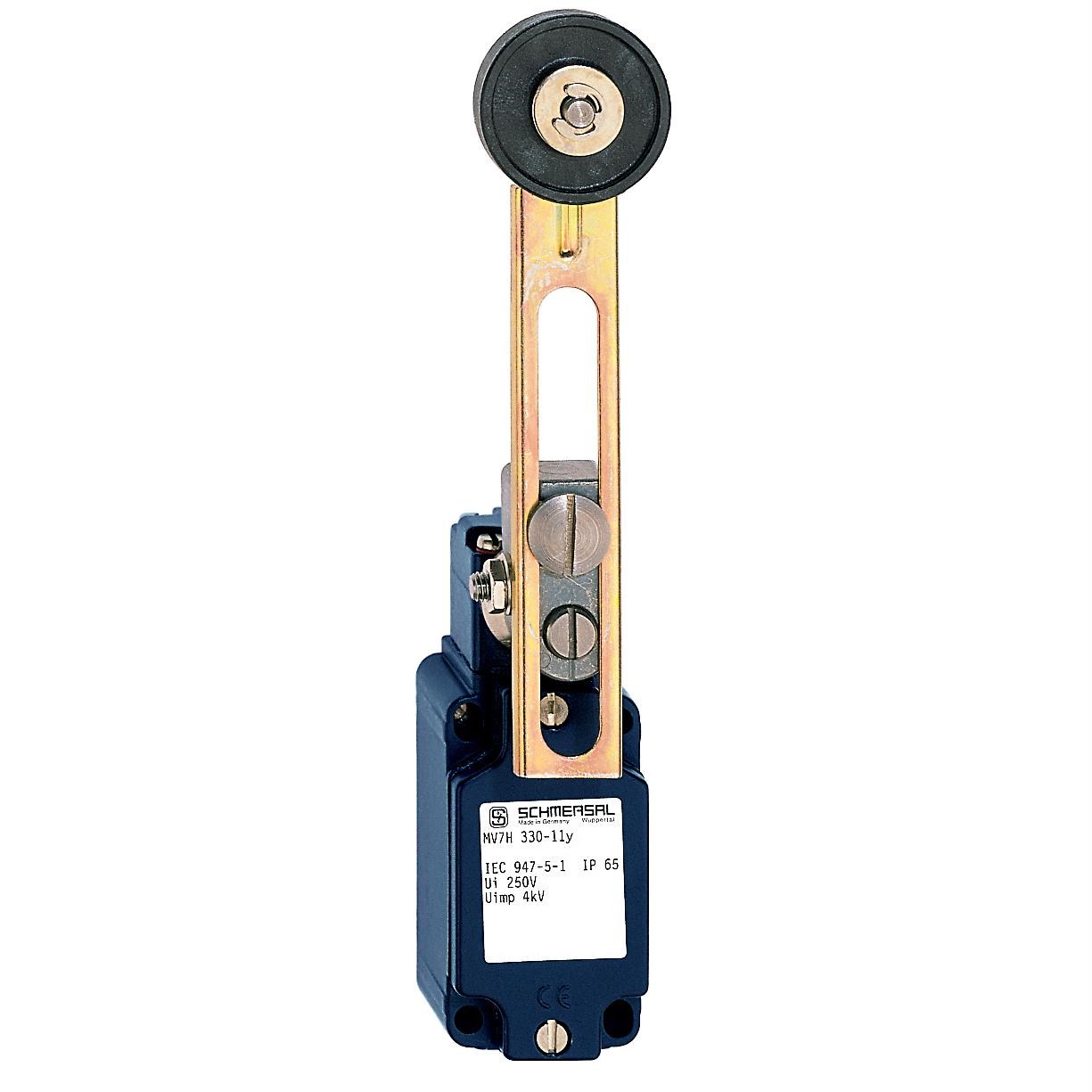

Schmersal 131160085 Position Switch Roller Lever 1NO-1NC Die Cast Light Alloy Painted Silver Contact

Product Code: 131160085

  • Snap action roller lever for quick response
  • IP65 rated for dust and water protection
  • 1NO+1NC contact configuration
  • Durable die cast light alloy housing
  • Complies with ENISO 13849-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M 330 roller lever 7H

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250 VAC
Rated Current
2.5A (AC-15)
Rated Voltage
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
6A

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
40mm
Height
232 mm
Weight
445 g
Width
40mm

Environmental

IP Rating
IP65
Ambient Temperature
-30 ... +160 °C
