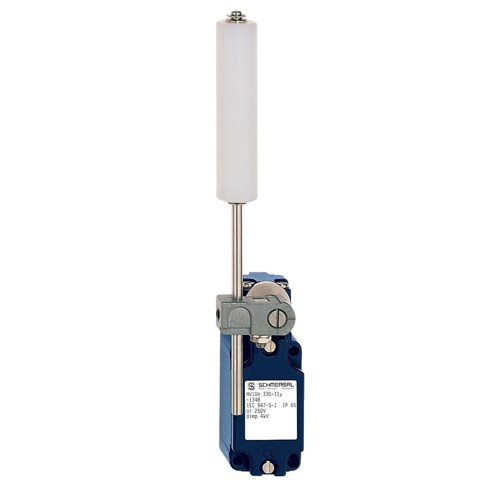

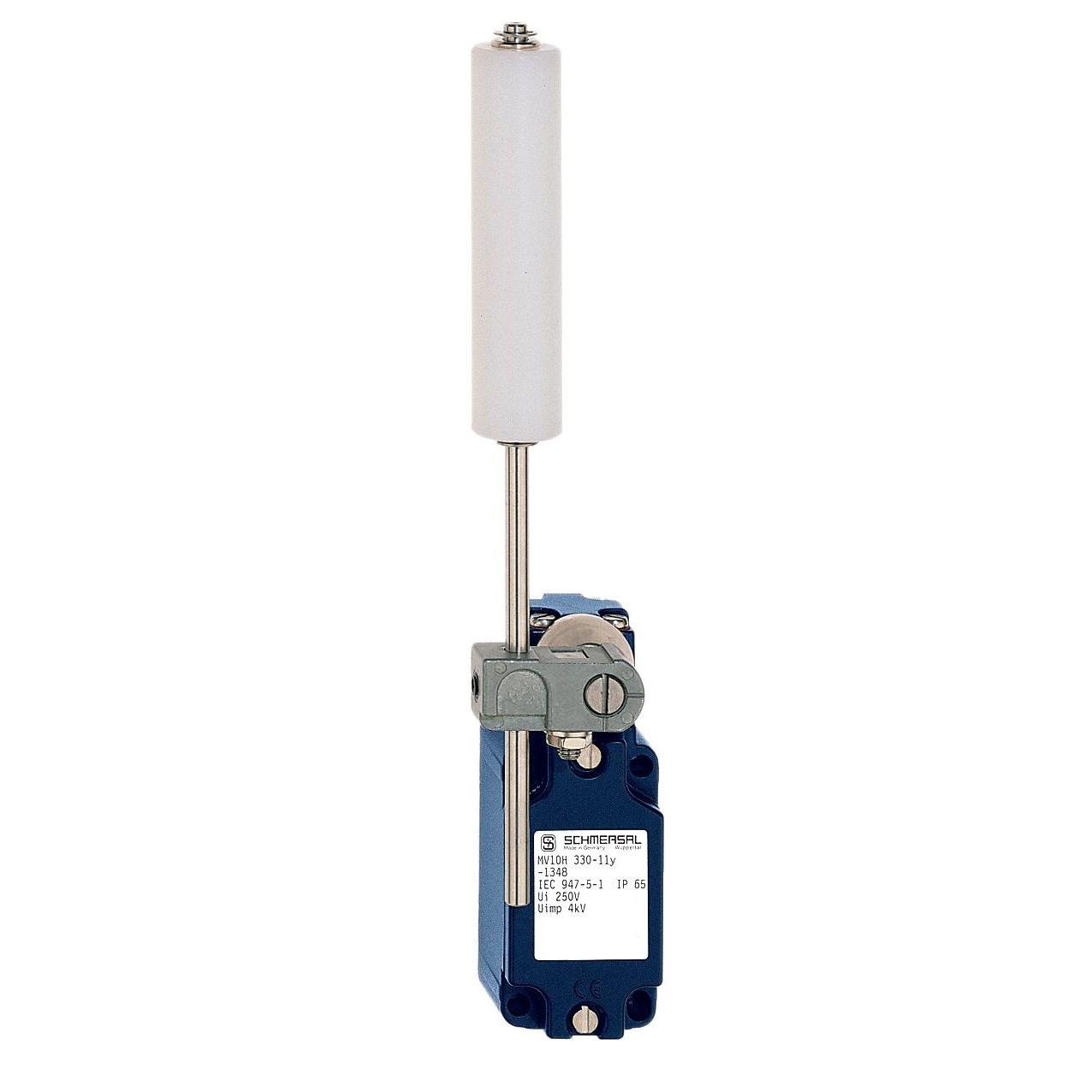

POSITION SWITCH 1NC 1NO 13AWG SCH MV10H 330-11Y-M20-1348

Product Code: 131159310

  • Rated for 230 VAC and 2.5 A
  • Durable die cast light alloy housing
  • IP65 protection against dust and water
  • Snap action switching with rod lever
  • Complies with ENISO 13849-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position switch
Brand
Schmersal
Series
M 330

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current
2.5 A (Utilisation Cat AC-15)
Rated Voltage
230 VAC (Utilisation Cat AC-15)
Terminal Type
Screw terminals

Mechanical

Actuator Type
Rod lever
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
40 mm
Height
276 mm
Weight
0.484 Kg
Width
40 mm

Environmental

Operating Temperature
-30 ... +90 °C
IP Rating
IP65

Documents

IPD Product Catalogue V17
