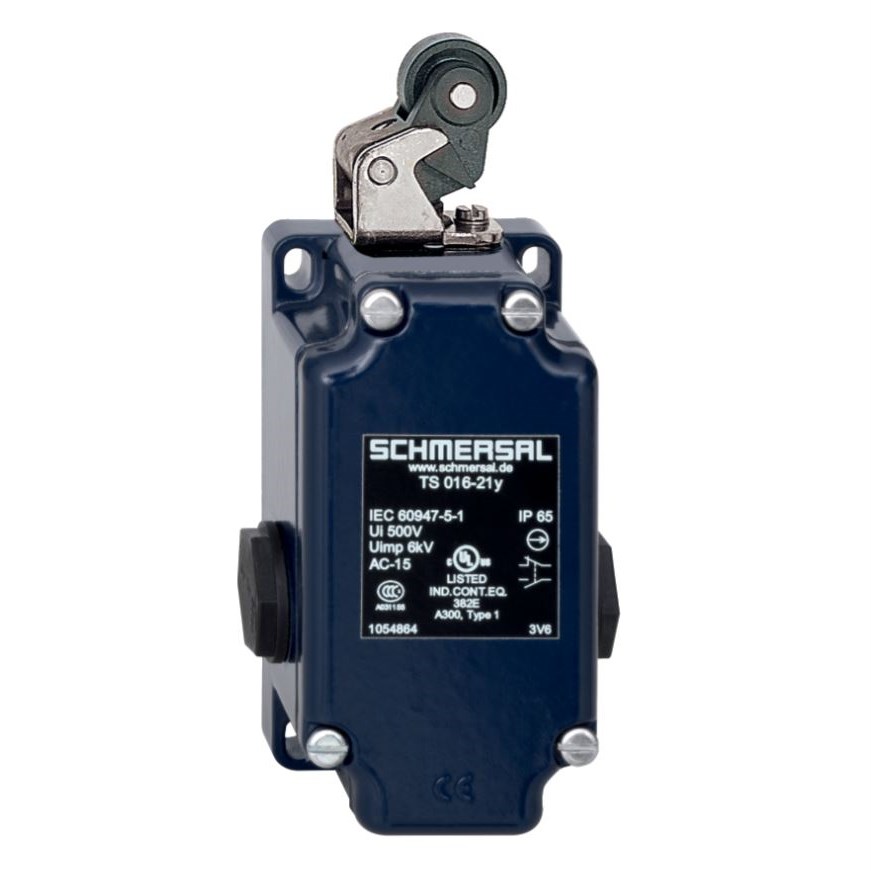

Schmersal 131148062 Position Switch 1NC Die Cast Light Alloy Painted Silver Contact

Product Code: 131148062

  • Rated for 400 VAC, 4 A
  • Durable die-cast light alloy housing
  • IP65 protection against dust and water
  • Certified: CCC, cULus, ENIEC 60947-5-1
  • Long mechanical life: 5 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
015 offset roller lever K

Electrical

No. of N/C Contacts
3
Rated Insulation Voltage (Ui)
400V
Terminal Type
Screw
Thermal Test Current
10A

Mechanical

Actuator Type
Offset Roller Lever
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
43mm
Height
143mm
Weight
0.399kg
Width
67mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 90°C

Documents

IPD Product Catalogue V17
