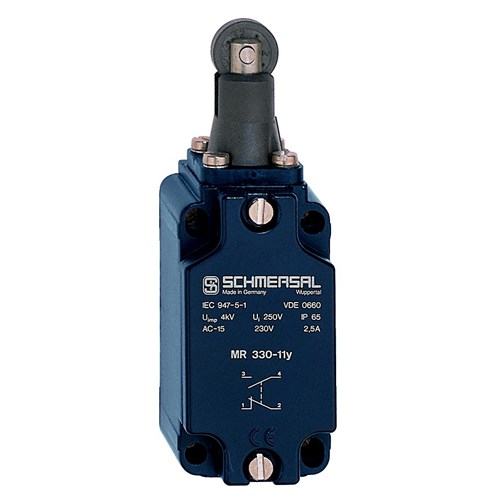

Schmersal 131081139 Position Switch Die Cast Light Alloy Painted Silver Contact

Product Code: 131081139

  • Operates at 230 VAC, 2.5 A
  • Durable die-cast light alloy housing
  • High protection with IP65 rating
  • Approved by CCC, cULus standards
  • Lightweight design at 215 g
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M 330 plunger S

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Insulation Voltage (Ui)
250V AC
Rated Current (In)
2.5A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Thermal Test Current
6A

Mechanical

Actuator Type
Roller Plunger
Contact Material
Gold-plated silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
40mm
Height
116.5mm
Weight
0.215kg
Width
40mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 90°C
