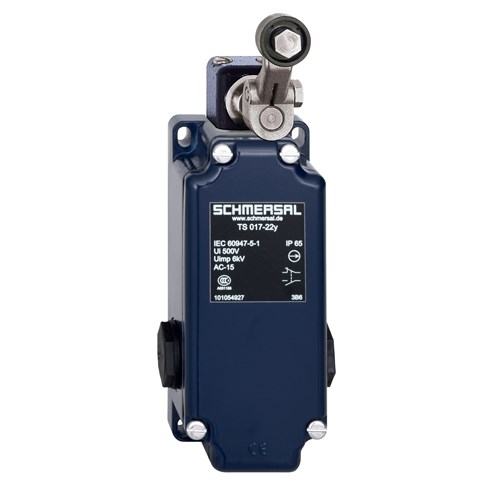

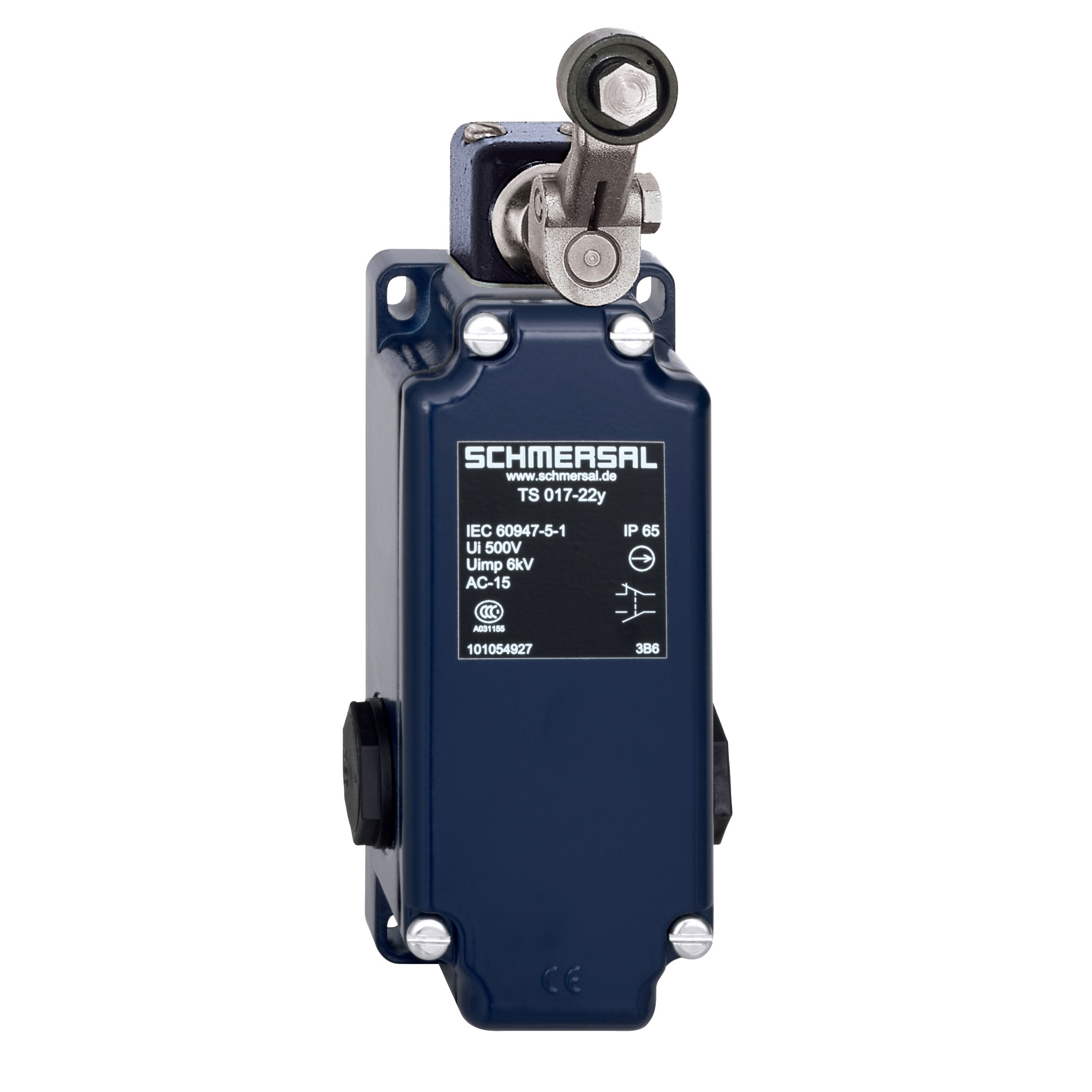

Schmersal 131060366 Position Switch 1NO-1NC Die Cast Light Alloy Painted Silver Contact

Product Code: 131060366

  • Rated for 400 VAC and 2.5 A
  • Durable die-cast alloy housing
  • IP65 protection against dust/water
  • Snap action switching mechanism
  • Long mechanical life: 1 million ops
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Series
17

Electrical

Rated Insulation Voltage (Ui)
500 V
Switching Principle
Snap action
Utilization Category
AC-15 400 VAC / 2.5 A
Contact Configuration
2 NC + 2 NO
Mechanical Life
1,000,000 operations
Thermal Test Current
10:00 AM

Mechanical

Cable Entry
Screw connection; M20 x 1.5 mm² cable entry
Housing Material
Light-alloy die-cast housing, painted
Actuator / Operating Element
Roller lever; plastic roller

Dimensions & Physical Data

Depth
188
Height
67
Weight
0.531 kg
Width
43

Environmental

IP Rating
IP65
Ambient Temperature
-30 ... +90 °C

Safety, Standards & Compliance

Standards and Approvals
EN IEC 60947-5-1
