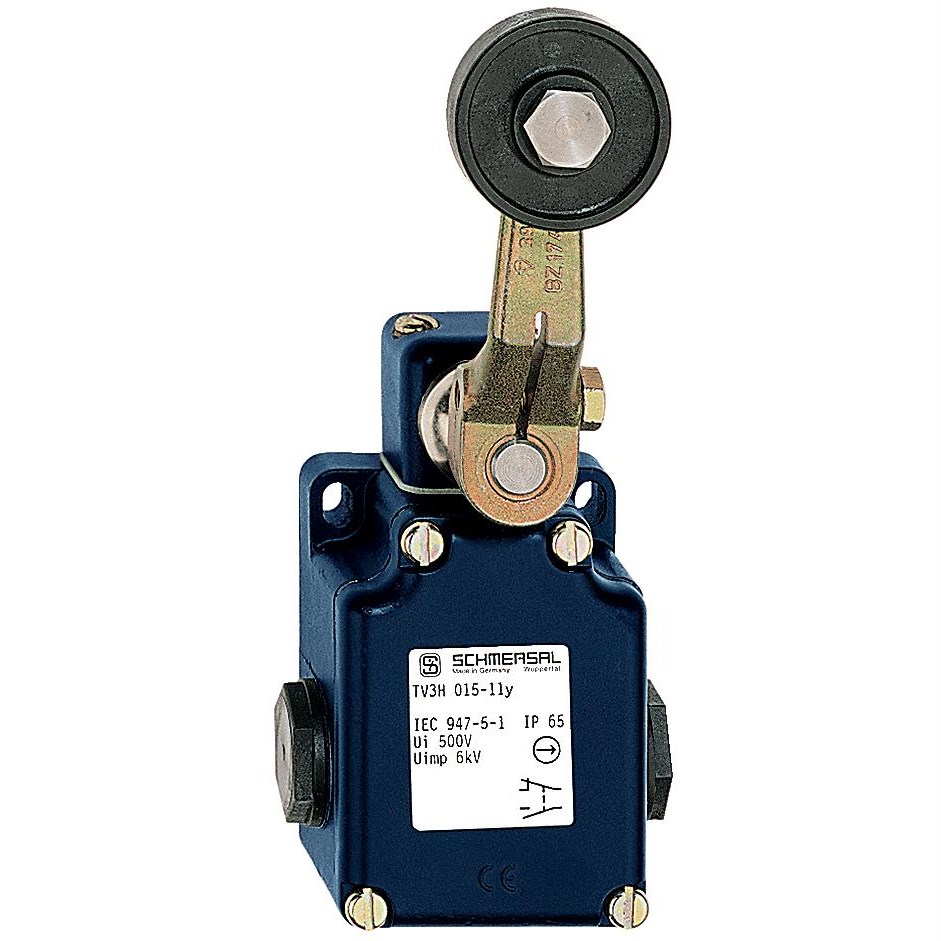

Schmersal 131058452 Position Switch 400VAC 1NO+1NC

Product Code: 131058452

  • Rated for 400 VAC and 2.5 A
  • Durable with 10 million cycles mech. life
  • Robust die-cast light alloy housing, painted
  • IP65 protection against dust and water
  • Operates in -30 to 90°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch (Roller Pivot Lever)
Brand
Schmersal
Series
MV3H 015

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
2.5A
Rated Voltage (Ur)
400V AC

Mechanical

Actuator Type
Roller lever (plastic roller), head repositionable 4 x 90°, lever adjustable 360°, transposable 180°
Housing Material
Light-alloy diecast, painted

Dimensions & Physical Data

Depth
43mm
Height
171mm
Weight
0.464kg
Width
67mm

Environmental

Operating Temperature
-40°C to 90°C
IP Rating
IP65

Documents

IPD Product Catalogue V17
