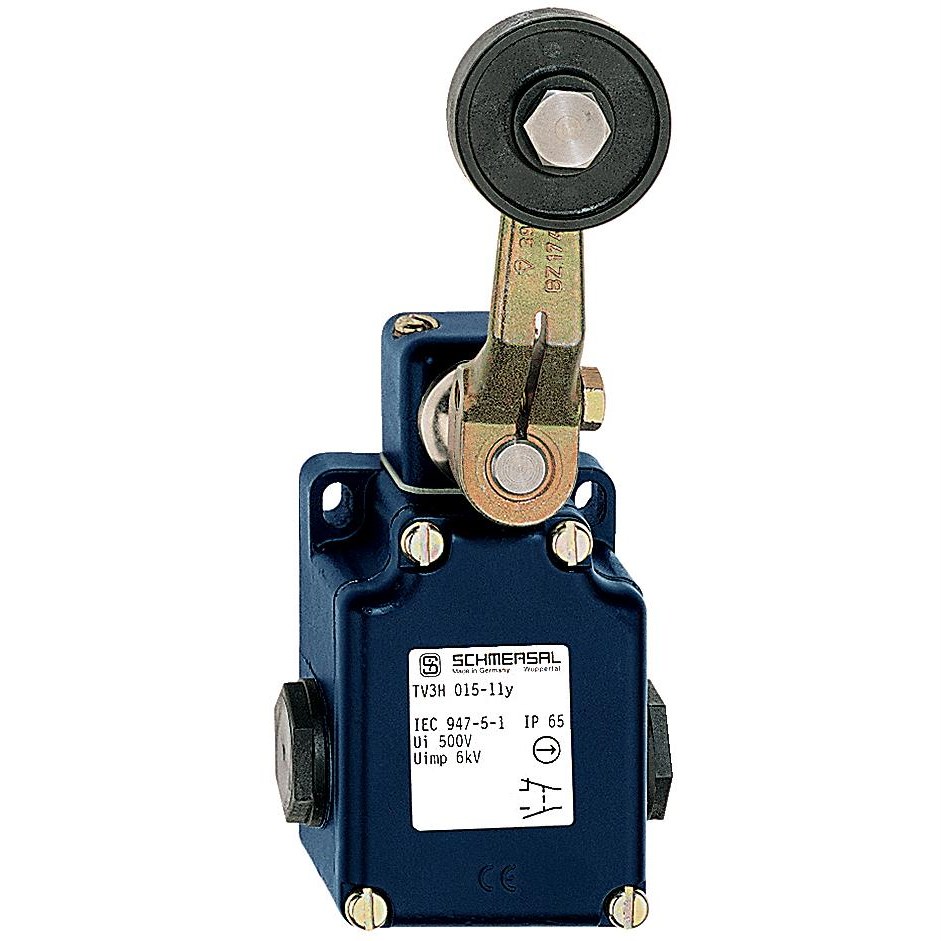

Schmersal 131058042 Position Switch Roller Lever 1NO-1NC Die Cast Light Alloy Painted Silver Contact

Product Code: 131058042

  • Rated for 400 VAC and 4 A
  • Durable die cast light alloy housing
  • IP65 protection against dust and water
  • Complies with ENIEC 60947-5-1 standards
  • Roller lever actuator with slow action switch
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
016 roller lever

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
43mm
Height
171mm
Weight
0.446kg
Width
67mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 90°C
