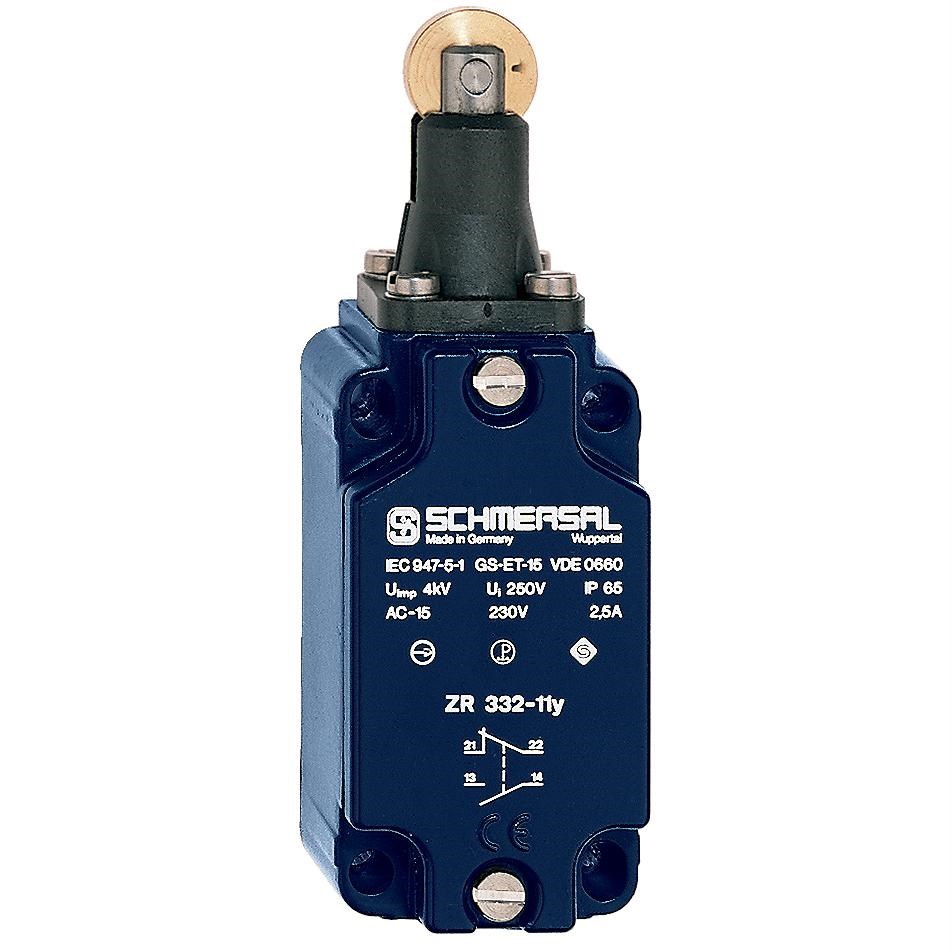

Schmersal 131054557 Position Switch with Safety Function 230VAC 1NO+1NC

Product Code: 131054557

  • Snap action with 1NO+1NC contacts
  • Durable die cast light alloy housing
  • Gold plated silver contact material
  • High mechanical life of 30 million cycles
  • Operates in -30 to 80°C, IP40 rated
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Terminal Type
Screw terminals

Mechanical

Actuator Type
Roller plunger
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
40mm
Height
116.5mm
Weight
0.225kg
Width
40mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C
