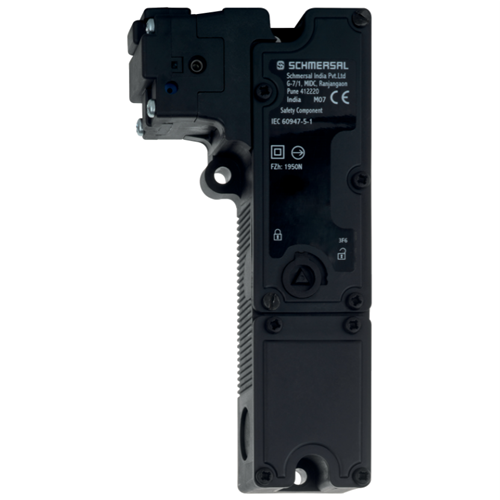

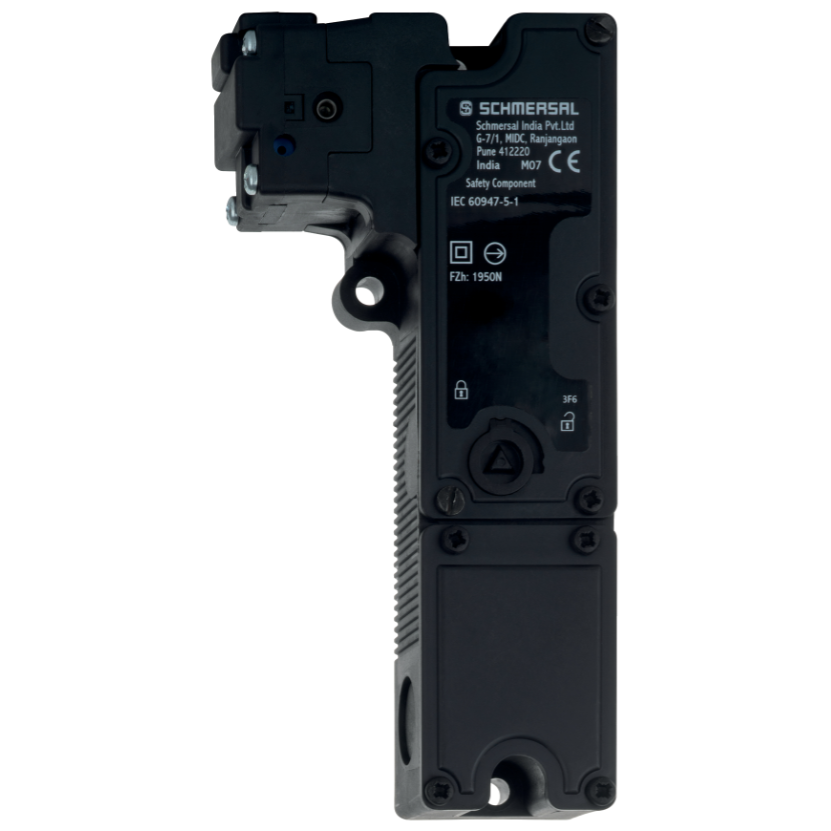

Schmersal 131031685 Solenid Interlock Switch 24VAC/VDC 2NC

Product Code: 131031685

  • Operates on 24 VAC/VDC with a current of 4 A
  • Durable with 1 million mechanical cycles
  • IP65/IP67 for robust environmental protection
  • Slow action mechanism ensures precise control
  • Compact size: 41 mm x 178 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 190

Electrical

No. of N/C Contacts
3
Rated Current (In)
0.166667

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
1,950 N
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
41 mm
Height
178 mm
Weight
480 g
Width
52 mm

Environmental

Operating Temperature
-25 to 55 °C
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
