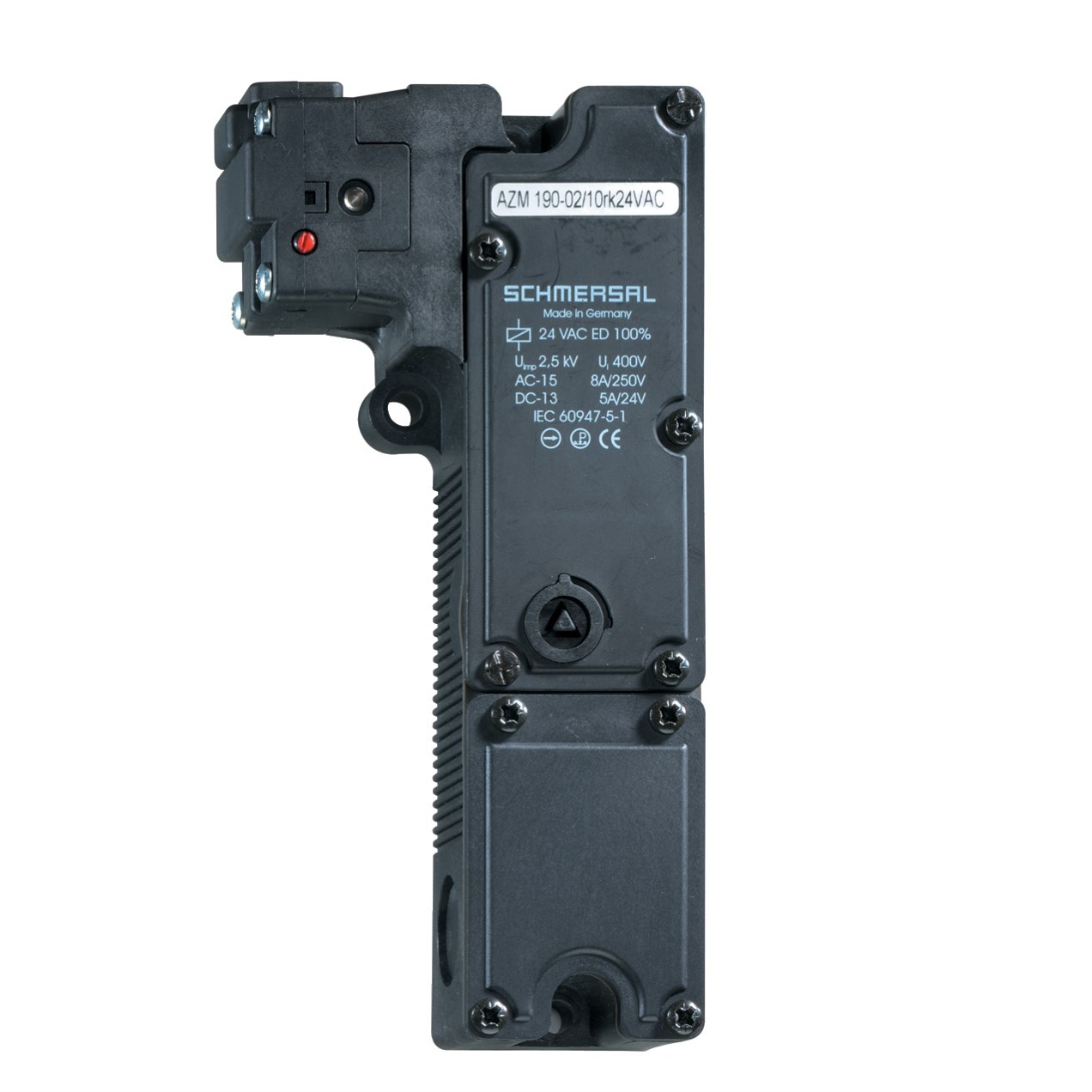

Schmersal 131030004 Solenid Interlock Switch 1NO+1NC

Product Code: 131030004

  • Compact sensor: 41x52x178 mm
  • High protection: IP67 rated
  • Long life: 1,000,000 cycles
  • Dual contacts: 1NO+1NC config
  • Broad approvals: cULus, CCC, UKCA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 190

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.166667
Rated Voltage (Ur)
24 V DC

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
1,950 N
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
41 mm
Height
178 mm
Weight
480 g
Width
52 mm

Environmental

Operating Temperature
-25 to 55 °C
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
