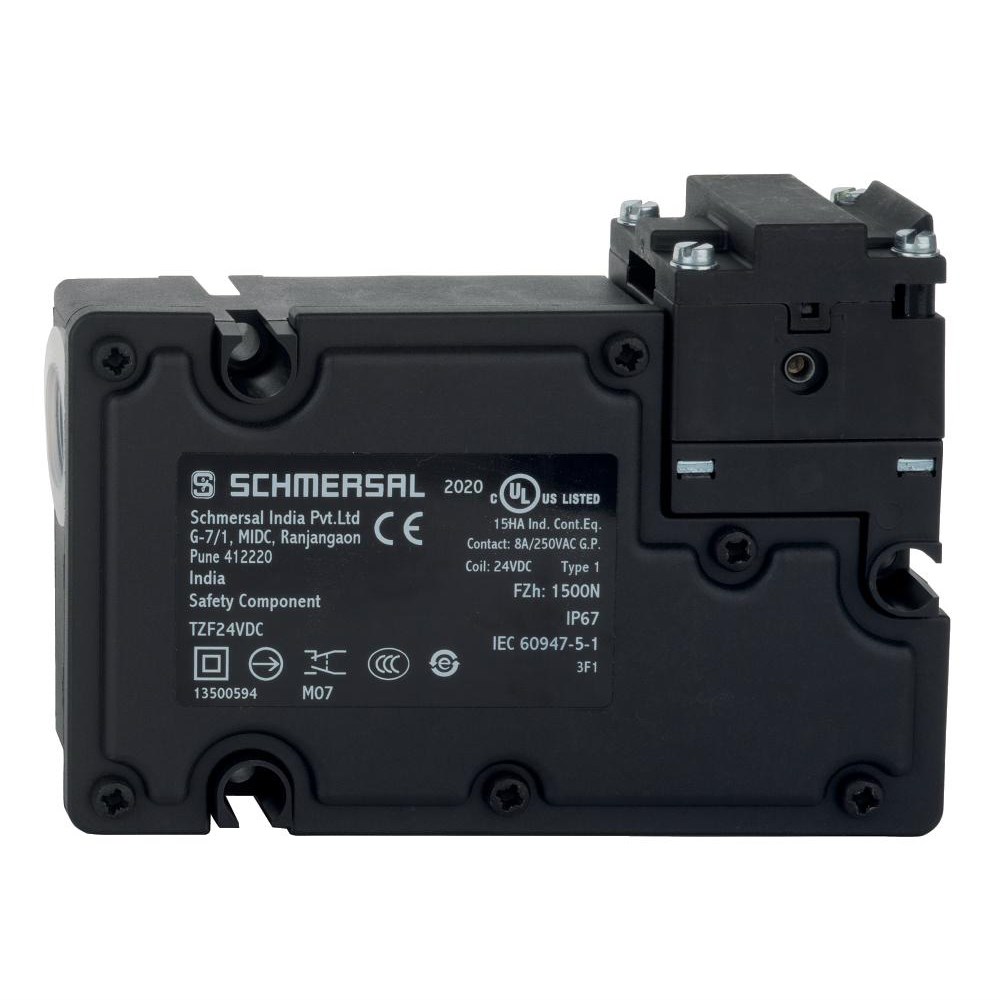

Schmersal 131022605 Solenid Interlock Switch 24VAC/VDC

Product Code: 131022605

  • Compatible with 24 VAC/VDC systems
  • Durable with 1,000,000 cycle lifespan
  • IP67 rated for dust and water protection
  • Compact size: 41mm x 92.5mm
  • Complies with multiple EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
TZF

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Voltage (Ur)
24V DC
Terminal Type
Screw terminals
Operating Mode
Power-to-unlock

Mechanical

Actuator Type
Separate actuator (mechanical)
Cable Entry
1 × M20 × 1.5
Guard Locking Force
2000N

Dimensions & Physical Data

Depth
41mm
Height
92.5mm
Weight
0.480kg (approx.)
Width
129mm

Environmental

IP Rating
IP67 / IP65

Documents

IPD Product Catalogue V17
