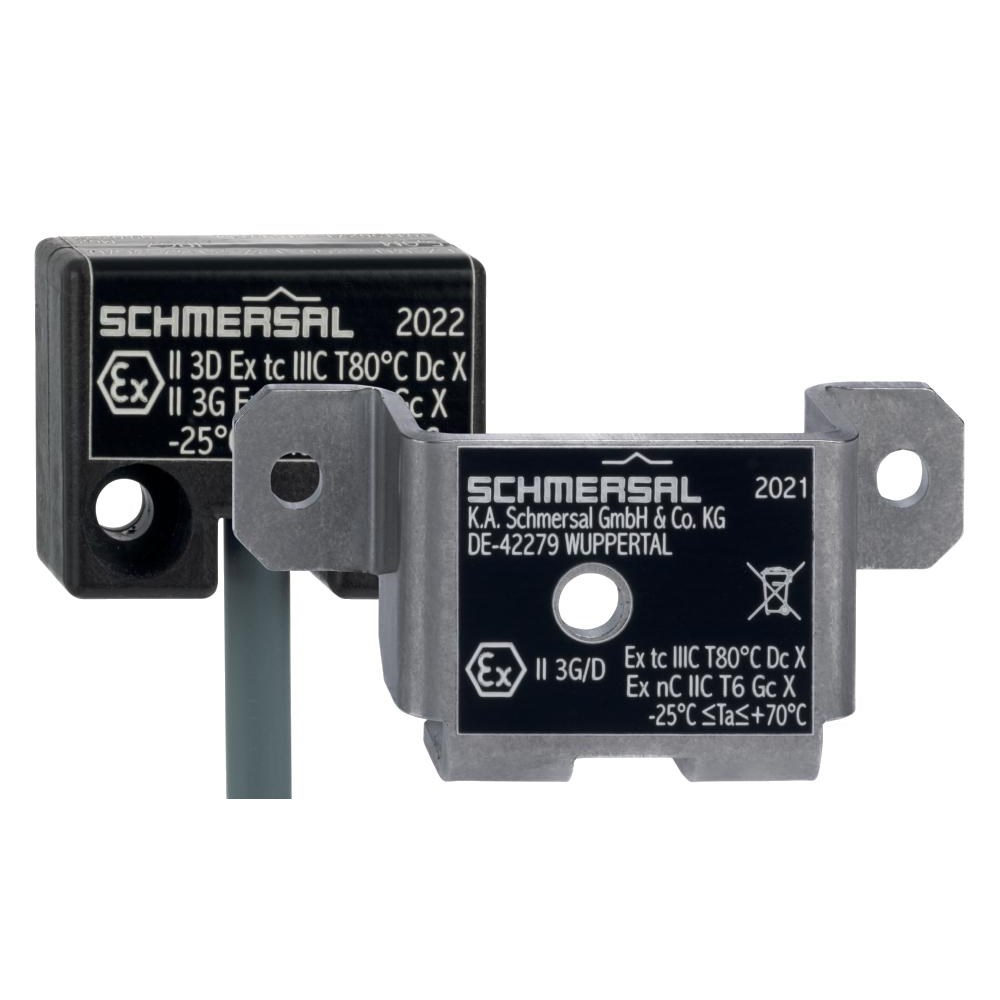

Schmersal 103045524 Magnetic Safety Sensor 1NO 5m Cable

Product Code: 103045524

  • 24 VDC, 0.1 A rated for efficient performance
  • Durable glass fibre reinforced thermoplastic housing
  • IP67 protection for harsh environments
  • Compact sensor size: 13x33x25 mm
  • Magnet actuated with 5 m cable length
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Explosion - Protected Magnetic Safety Sensor
Brand
Schmersal
Series
EX-BNS 250

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.1A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
EX-BPS 250-3G/D
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.27kg
Width
33mm
Cable Length
5m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
